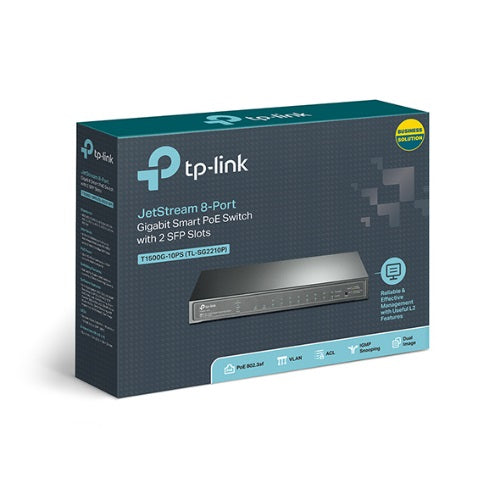

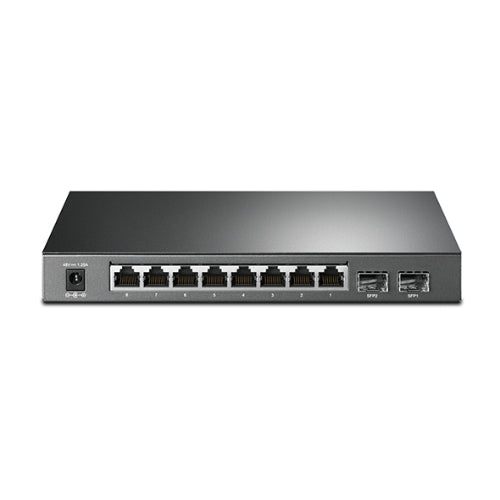

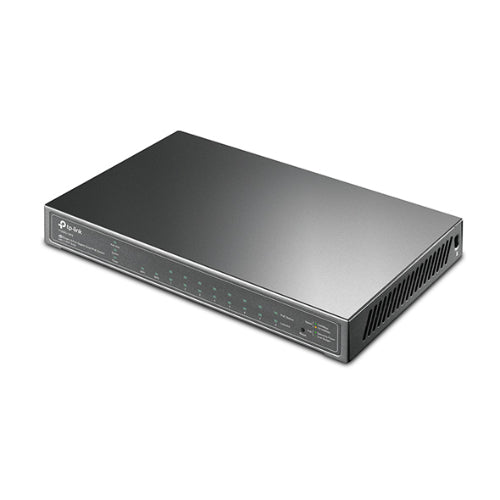

TP-Link T1500G-10PS (TL-SG2210P) JetStream 8-Port Gigabit Smart PoE Switch with 2 SFP Slots

Features 8 PoE ports, with total PoE power budget of 53W and useful PoE power management features

Gigabit Ethernet connections on all ports provide full speed of data transferring

Advanced security features include IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, and Radius Authentication

L2 L3 L4 QoS and IGMP snooping optimize voice and video applications

WEB CLI managed modes, SNMP, RMON bring abundant management features

Dual Firmware Image improves reliability and up-time of your network

ARDWARE FEATURES

Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p

Interface 8 10 100 1000Mbps RJ45 Ports

Port8 obtain power from PoE source

(Auto-Negotiation Auto MDI MDIX)

Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

100BASE-TX 1000Base-T: UTP category 5, 5e or above cable (maximum 100m)

Fan Quantity Fanless

Physical Security Lock No

Power Supply 100~240VAC, 50 60Hz

External Power Adapter(Output: 48VDC 1.25A)

Power Consumption Maximum (PoE on): 64.9W

Maximum (PoE off): 9.9W

PoE Ports (RJ45) Standard: 802.3af compliant

PoE Ports: 8 Ports

Power Supply: 53W

Dimensions ( W x D x H ) 209 126 26mm

Max Power Consumption 9.92W (220V 50Hz with no PD connected)

64.89W (110V 60Hz with 53W PD connected)

Max Heat Dissipation 33.85 BTU h (with no PD connected)

221.40 BTU h (with 53W PD connected)

PERFORMANCE

Bandwidth Backplane 20Gbps

Packet Forwarding Rate 14.9Mpps

MAC Address Table 8K

Jumbo Frame 9KB
