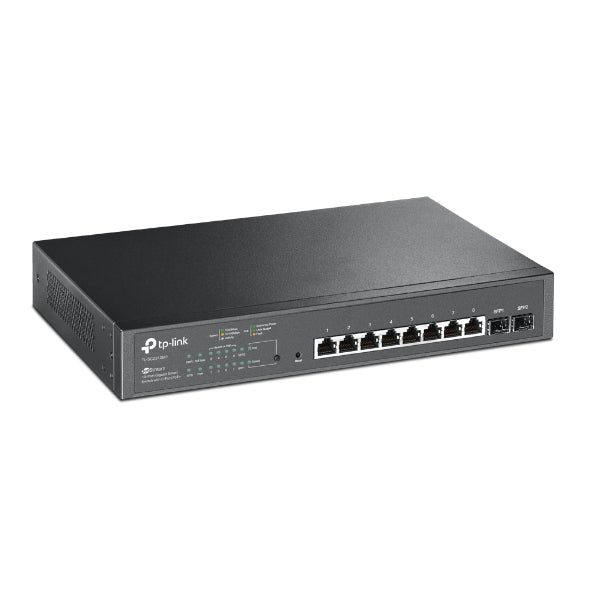

TP-Link TL-SG2210MP JetStream 10-Port Gigabit Smart Switch with 8-Port PoE With Omada SDN Supported

Features 8 802.3af at compliant PoE ports, with total PoE power budget of 150 W and useful PoE power management features

Omada SDN platform integration provides 100pct centralised cloud management to create a highly scalable network

Gigabit Ethernet connections on all ports provide full speed of data transferring

Advanced security features include IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, and Radius Authentication

L2 L3 L4 QoS and IGMP snooping optimise voice and video applications

WEB CLI managed modes, SNMP, RMON bring abundant management features

HARDWARE FEATURES

Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p

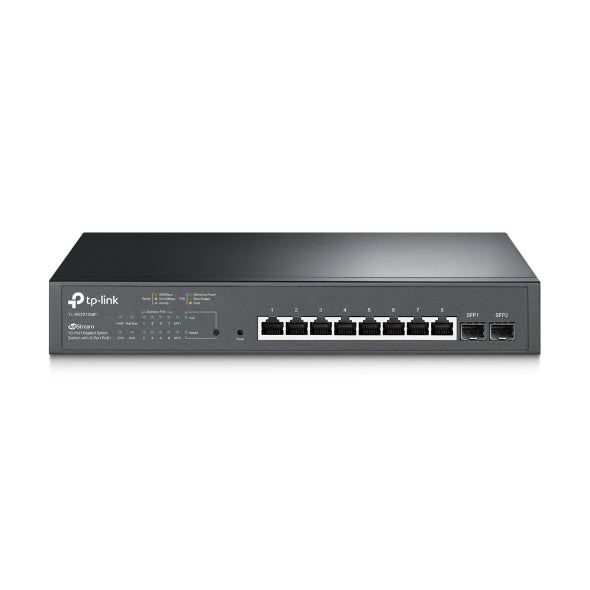

Interface 8— 10 100 1000 Mbps RJ45 Ports, all supporting PoE (Auto-Negotiation Auto MDI MDIX)

2— 100 1000 Mbps SFP Slots

Network Media 10BASE-T: UTP STP category 3, 4, 5 cable (maximum 100m)

100BASE-TX 1000Base-T: UTP STP category 5, 5e or above cable (maximum 100m)

100BASE-FX: MMF, SMF

1000BASE-X: MMF, SMF

Fan Quantity 1

Physical Security Lock Yes

PoE Ports(RJ45) Standard: 802.3at af compliant

PoE Ports: 8 Ports

Power Supply: 150 W

Dimensions ( W x D x H ) (294 x 180 x 44 mm)

Mounting Rackmount Desktop

Max Power Consumption 12.2 W (110 V 60 Hz with no PD connected)

173.9 W (110 V 60 Hz with 150 W PD connected)

Max Heat Dissipation 41.63 BTU h (with no PD connected)

539.35 BTU h (with 150 W PD connected)

PERFORMANCE

Switching Capacity 20 Gbps

Packet Forwarding Rate 14.9 Mpps

MAC Address Table 8K

Packet Buffer Memory 4.1 Mbit

Jumbo Frame 9 KB
