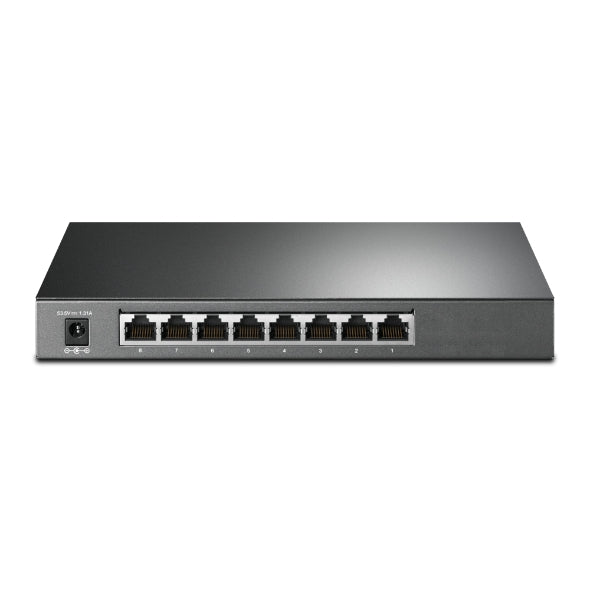

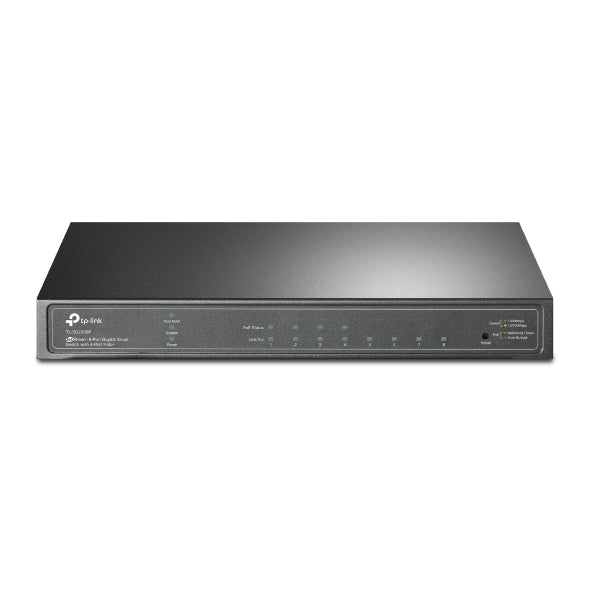

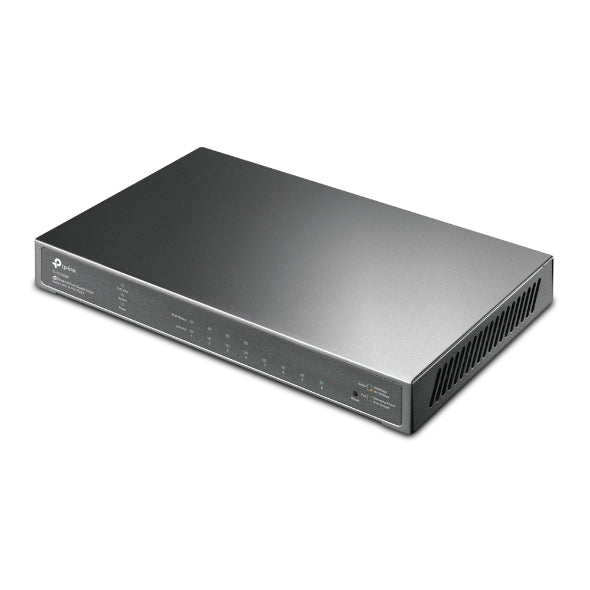

TP-Link TL-SG2008P JetStream 8-Port Gigabit Smart Switch with 4-Port PoE With Omada SDN Supported

Features 4 PoE ports, with a total PoE power budget of 62 W and useful PoE power management features

Omada SDN platform integration provides 100pct centralized cloud management to create a highly scalable network

Advanced security features include IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, and Radius Authentication

L2 L3 L4 QoS and IGMP snooping optimise voice and video applications

Gigabit Ethernet connections on all ports provide full speed of data transferring

HARDWARE FEATURES

Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x

Interface 8— 10 100 1000 Mbps RJ45 Ports (Ports 1“4 Support 802.3at af PoE)

Auto-Negotiation Auto MDI MDIX

Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

100BASE-TX 1000Base-T: UTP category 5, 5e or above cable (maximum 100m)

Fan Quantity Fanless

Power Supply External Power Adapter (Output: 53.5 VDC 1.31 A)

Power Consumption 7.9 W (220 V 50 Hz) (no PD connected)

79.2 W (220 V 50 Hz) (with 62 W PD connected)

PoE Ports (RJ45) Standard: 802.3af at compliant

PoE Ports: 4 Ports

Power Supply: 62 W

Dimensions W x D x H 209 x 126 x 26mm

PERFORMANCE

Bandwidth Backplane 16 Gbps

MAC Address Table 8k

Packet Buffer Memory 4.1 Mbit

Jumbo Frame 9 KB

MANAGEMENT

Omada App Yes
