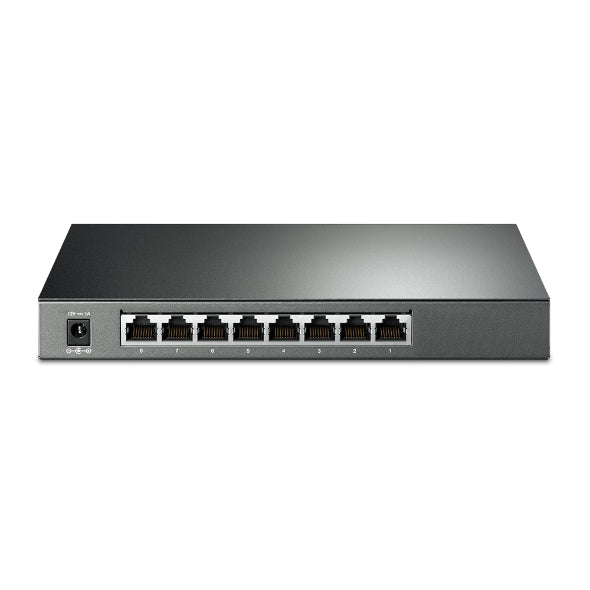

TP-Link TL-SG2008 JetStream 8-Port Gigabit Smart Switch

Full Gigabit Ports: 8— gigabit RJ45 ports provide high-speed connections.

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.

Centralised Management: Cloud access and Omada app for ultra convenience and easy management.

Robust Security Strategies: 802.1Q VLAN, ACL, Port Security, Storm Control, and more.

Optimise Voice and Video Applications: L2 L3 L4 QoS and IGMP snooping.

Versatile Management: WEB CLI managed modes, SNMP, and RMON bring abundant management features.

HARDWARE FEATURES

Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab,

IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s,

IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x

Interface 8 10 100 1000Mbps RJ45 Ports

(Auto-Negotiation Auto MDI MDIX)

Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

100BASE-TX 1000Base-T: UTP category 5, 5e or above cable

(maximum 100m)

Fan Quantity Fanless

Power Supply 12 VDC 1 A

External Adapter or

Obtain Power from

PoE Source

Power Consumption 6.4 W (220 V 50 Hz)

Dimensions ( W x D x H ) 8.2 — 4.9 — 1.0 in (209 — 126 — 26 mm)

PERFORMANCE

Bandwidth Backplane 16 Gbps

Packet Forwarding Rate 11.9 Mpps

MAC Address Table 8K

Jumbo Frame 9 KB

SOFTWARE FEATURES

Quality of Service 802.1p CoS DSCP priority

8 priority queues

Priority Schedule Mode

- SP (Strict Priority)

- WRR (Weighted Round Robin)

Queue Weight Config

Bandwidth Control

- Port Flow based Rating Limit

Smoother Performance

Storm Control

- Multiple Control Modes(kbps ratio)

- Broadcast Multicast Unknown-Unicast Control
