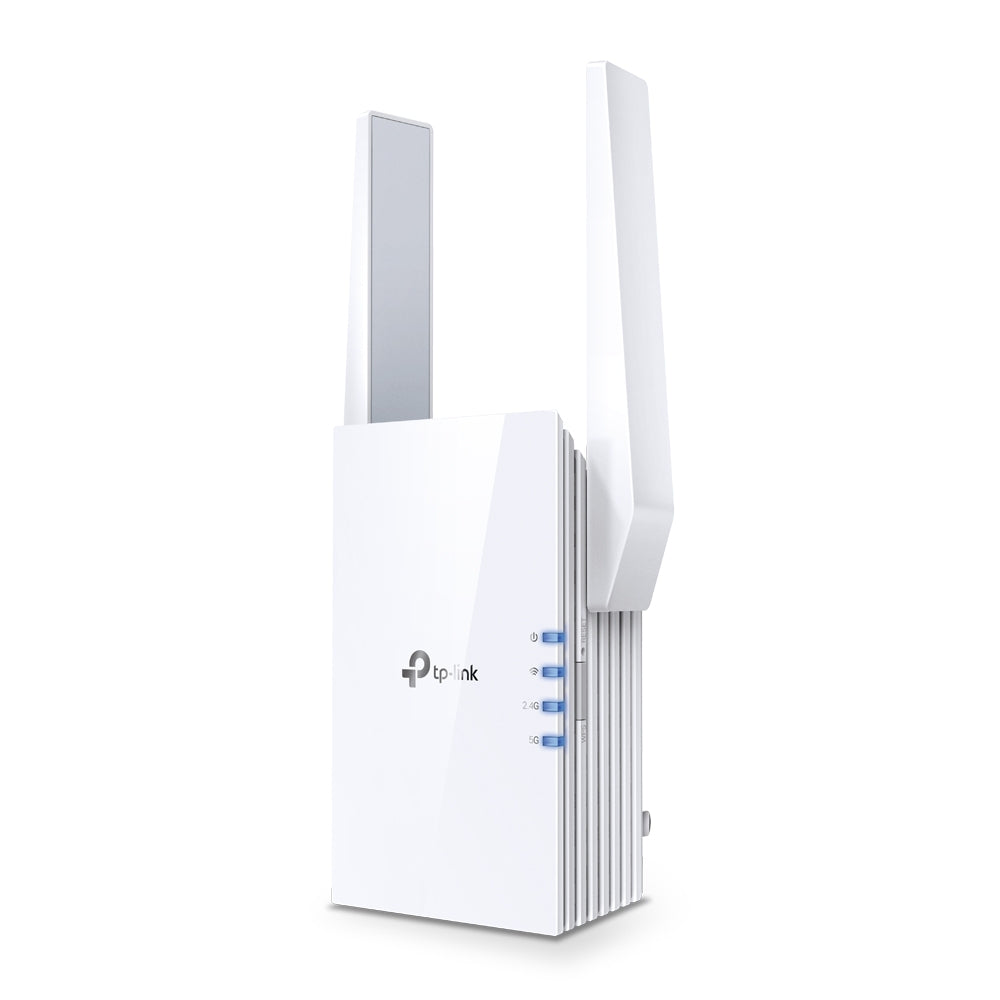

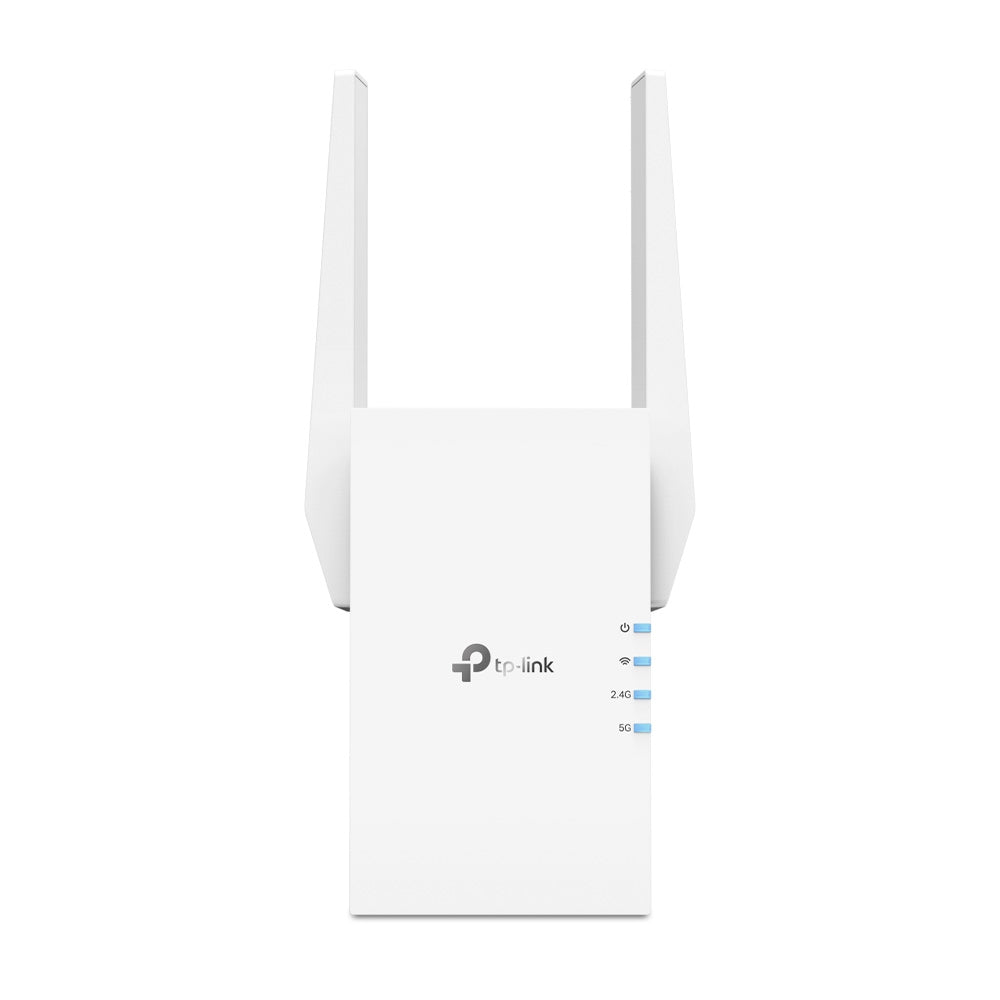

TP-Link RE705X AX3000 Mesh WiFi 6 Extender 574Mbps 2.4GHz 2402Mbps 5GHz 1x1GBps WPS 2xAntenna

Dual Band WiFi 6 - Separates 5 GHz (2402 Mbps) and 2.4 GHz (574 Mbps) WiFi bands for faster speeds and greater capacity with the latest technology

Uninterrupted Streaming - Easily create a TP-Link OneMesh„ network for seamless whole home WiFi coverage

AP Mode - Create a new WiFi access point through the Gigabit Ethernet port to enhance your wired network with WiFi capability

Gigabit Ethernet Port - Provides high-speed wired access, ideal for smart TVs, PCs, and game consoles

App Control - Easy Setup and management with your network using the TP-Link Tether app

HARDWARE FEATURES

Ports 1 Gigabit Ethernet Port

Button WPS Button, Reset Button

Power Consumption 12.6W

Dimensions ( W x D x H ) 9746158

Antenna 2 External Antennas

WIRELESS FEATURES

Wireless Standards IEEE 802.11a n ac ax 5GHz, IEEE 802.11b g n ax 2.4GHz

Frequency 2.4GHz and 5GHz

Signal Rate 574 Mbps at 2.4GHz, 2402 Mbps at 5GHz

Reception Sensitivity 5GHz:

11a 6Mbps:-97dBm

11a 54Mbps:-78dBm

11ax HE20 MCS0: -97dBm

11ax HE20 MCS11: -66dBm

11ax HE40 MCS0: -94dBm

11ax HE40 MCS11: -62dBm

11ax HE80 MCS0: -91dBm

11ax HE80 MCS11: -61dBm

11ax HE160 MCS11: -59dBm

2.4GHz:

11g 6Mbps:-96dBm

11g 54Mbps:-78dBm

11ax HE20 MCS0: -95dBm

11ax HE20 MCS11: -66dBm

11ax HE40 MCS0: -93dBm

11ax HE40 MCS11: -62dBm

Transmit Power CE: 2.4GHz ‰¤16dBm, 5GHz ‰¤21dBm

Wireless Modes Range Extender Access Point

Wireless Functions Enable Disable Wireless Radio, Wireless Statistics

Wireless Security WEP, WPA, WPA2, WPA3

OTHERS

Certification CE, RoHS

Package Contents Wi-Fi Range Extender RE705X

Quick Installation Guide

System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista„ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux

Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
