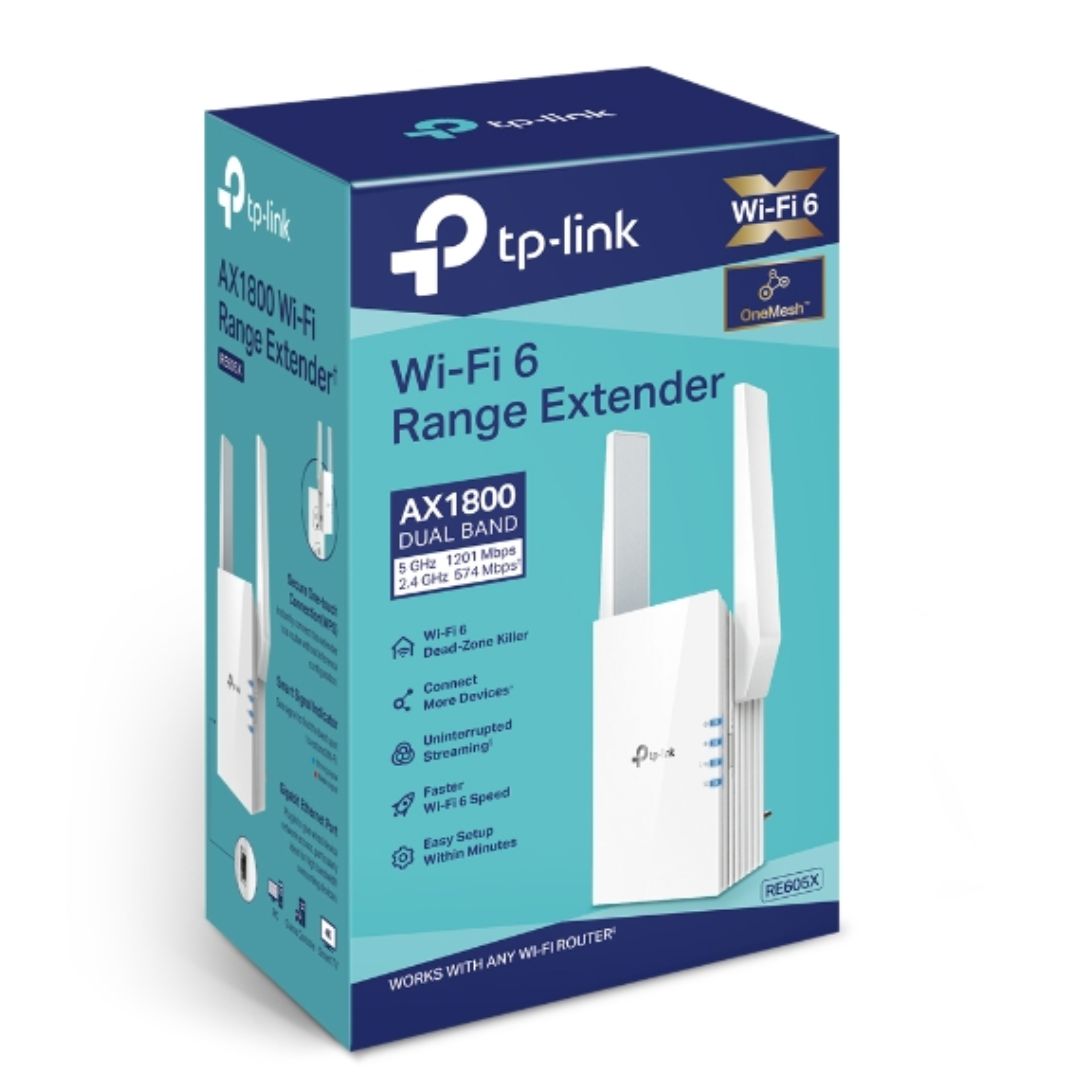

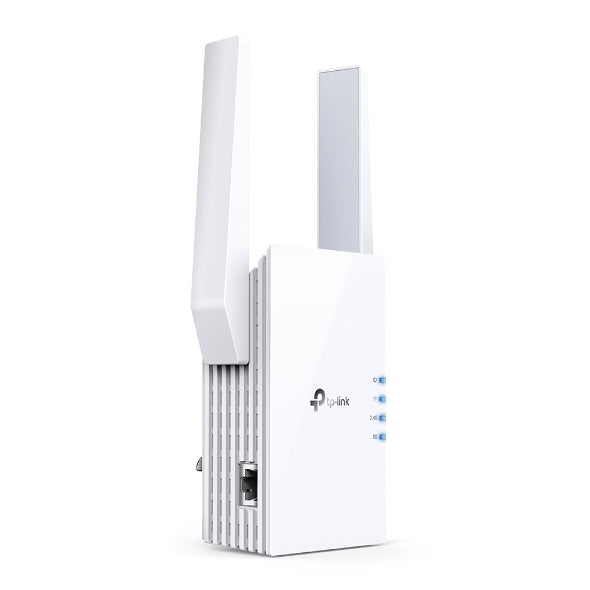

TP-Link RE605X AX1800 Wi-Fi Range Extender 574Mbps 2.4GHz 1201Mbps 5GHz 1x1GBps WPS 2xAntenna 2x2 MI-MIMO Dual Band Access Point

RE605X comes equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity, and reduced network congestion.

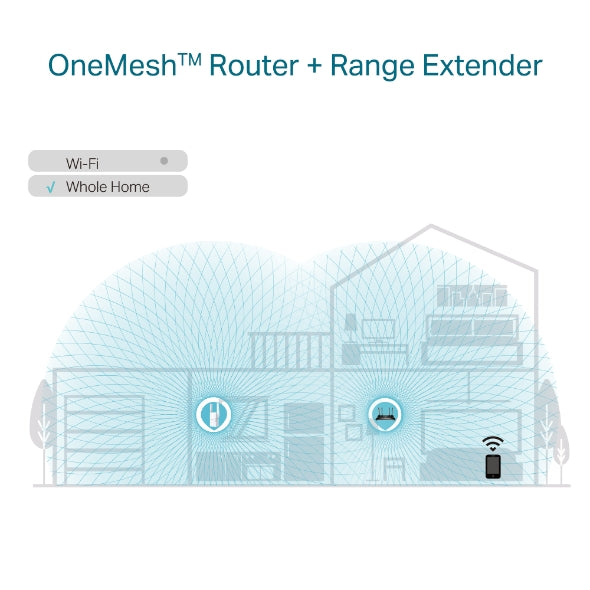

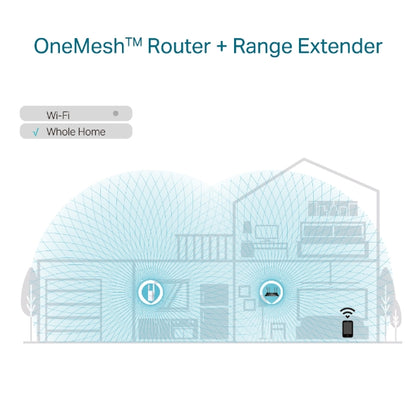

Creates a Mesh network by connecting to a OneMesh router for seamless whole-home coverage.

Gigabit Ethernet Port “ Provide faster-wired connections to smart TVs, computers and gaming consoles

Intelligent Signal Light “ Helps to determine the best location for optimal Wi-Fi coverage by indicating the signal strength in the current placement

AP Mode “ create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability

TP-LINK Tether App “ Easily access and manage your network using any iOS or Android mobile device

Ultimate Compatibility “ Extend the range of any Wi-Fi router or wireless access point

HARDWARE FEATURES

Ports 1 Gigabit Ethernet Port

Button WPS Button, Reset Button

Power Consumption 10W

Dimensions ( W x D x H ) 2.9—1.8—4.9 in. (74.0—46—124.8 mm)

Antenna 2 External Antennas

WIRELESS FEATURES

Wireless Standards IEEE 802.11a n ac ax 5GHz, IEEE 802.11b g n ax 2.4GHz

Frequency 2.4GHz and 5GHz

Signal Rate 574 Mbps at 2.4GHz, 1201 Mbps at 5GHz

Reception Sensitivity 5 GHz:

11ax HE80 MCS0: -87dBm, 11ax HE80 MCS11: -56dBm

11a 6Mbps: -93dBm, 11a 54Mbps: -75dBm

2.4 GHz:

11ax HE40 MCS0: -93dBm, 11ax HE40 MCS11: -63dBm

11g 54Mbps: -77dBm, 11n HT20 MCS7: -75dBm

11n HT40 MCS7: -72dBm

Transmit Power CE: 2.4 GHz ‰¤15dBm, 5 GHz ‰¤21dBm

Wireless Functions Enable Disable Wireless Radio, Wireless Statistics

Wireless Security 64 128-bit WEP, WPA WPA-PSK2 encryptions

OTHERS

Package Contents Wi-Fi Range Extender RE605X

Quick Installation Guide

System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista„ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux
