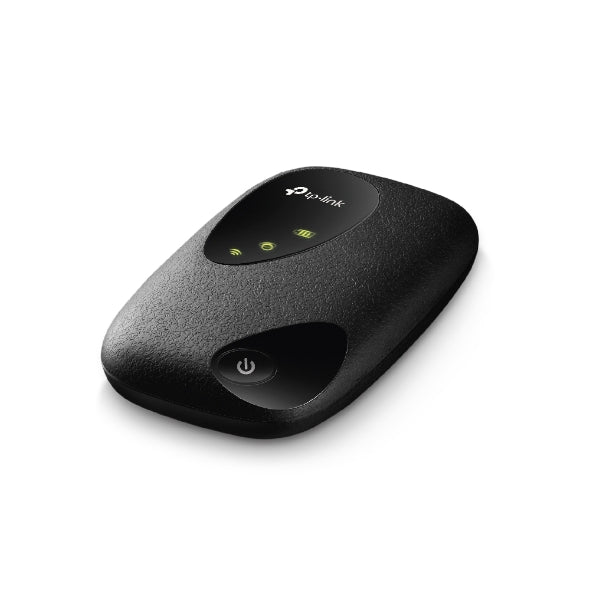

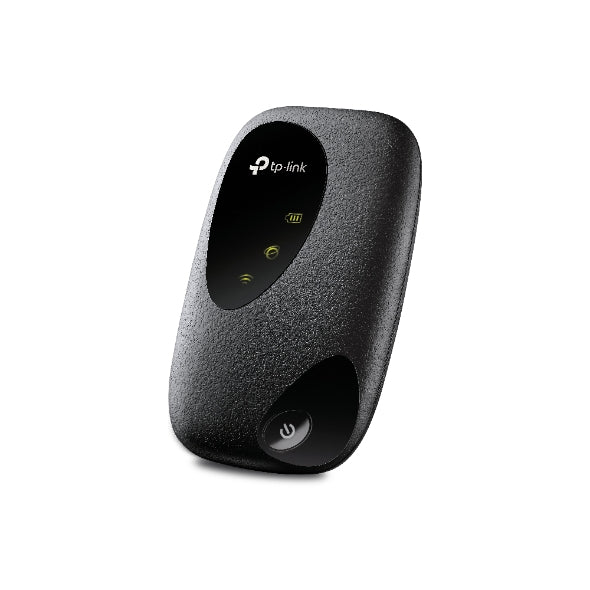

TP-Link M7000 4G LTE Mobile Wi-Fi

Share with friends internet access for up to 10 devices simultaneously

2000 mAh battery for 8 hours of usage

Supports the latest generation 4G FDD TDD-LTE, compatible with the network of most countries and regions

Easy management with the tpMiFi App

HARDWARE FEATURES

Interface 1 micro USB port for power supply

1 SIM card slot

Button Power Button, Reset Button

Power Supply Internal 2000 mAh Rechargeable Battery

External 5V 1A

Network Type 4G: FDD-LTE B1 B3 B5 B7 B8 B20

(2100 1800 850 2600 900 800 MHz)

TDD-LTE B38 B40 B41 (2600 2300 2500 MHz)

3G: HSPA HSPA UMTS: B1 B5 B8(2100 850 900 MHz

Data Rates DL: 150 Mbps, UL: 50 Mbps

Dimensions ( W x D x H ) 3.7—2.2—0.8 in. (94—56.7—19.8 mm)

Antenna Internal Antennas

LED Display Wi-Fi status, Internet connection status, Battery status

WIRELESS FEATURES

Wireless Standards IEEE 802.11b g n

Wireless Speeds Up to 300 Mbps

Frequency 2.4 GHz

Reception Sensitivity 11b 11Mbps: -87.5dBm

11g 54Mbps: -74dBm

11n HT20 MCS7: -70dBm

11n HT40 MCS7: -68dBm

Transmit Power 20dBm

Wireless Security Support WPA-PSK WPA2-PSK,Wireless MAC Filtering, Enable Disable SSID Broadcast

DHCP Server, Client, DHCP Client List

OTHERS

Package Contents Mobile Wi-Fi M7000

Micro USB Cable

2000 mAh Battery

Quick Installation Guide

System Requirements Windows 10 8 7 vista XP, Mac OS, Android, iOS, Windows Phone

Certifications CE, RoHS

Environment Operating Temperature: 0„ƒ~35„ƒ (32„‰ ~95„‰)

Storage Temperature: -20„ƒ~60„ƒ (-4„‰ ~140„‰)

Operating Humidity: 10pct~90pct non-condensing

Storage Humidity: 5pct~90pct non-condensing
