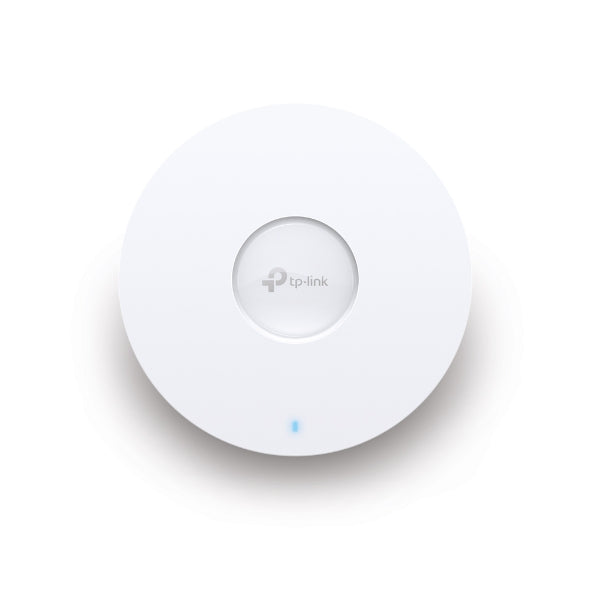

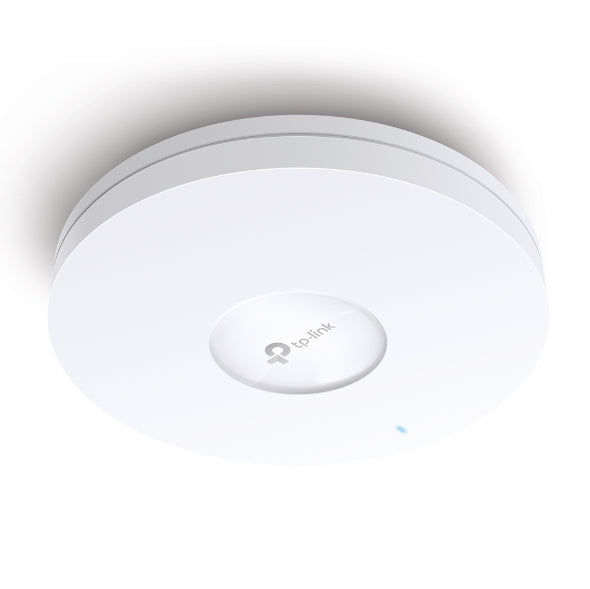

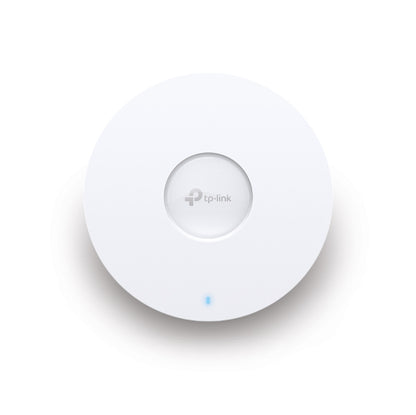

TP-Link EAP660 HD AX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount Access Point

Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 1148 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 3550 Mbps Wi-Fi speeds.

High-Density Connectivity: 4— increased capacity to connect more devices simultaneously.¡

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)§, Centralised Cloud Management, and Intelligent Monitoring.

Centralised Management: Cloud access and Omada app for ultra convenience and easy management.

2.5G Port: A 2.5 Gbps Ethernet port boosts total internet throughput.

Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.–³

PoE Support: Supports Power over Ethernet (802.3at) for convenient deployment and installation.

Secure Guest Network: Along with multiple authentication options (SMS Facebook Wi-Fi Voucher, etc.) and abundant wireless security technologies.

HARDWARE FEATURES

Interface 1— 2.5 Gbps Ethernet Port (supports IEEE802.3at PoE)

Button Reset

Power Supply 802.3at PoE

12 V DC

Power Consumption EU: 18.5 W

US: 21.5 W

Dimensions ( W x D x H ) 9.6 — 9.6 — 2.5 in (243 — 243 — 64 mm)

Antenna Type Internal Omni

2.4 GHz: 4— 4 dBi

5 GHz: 4— 5 dBi

Mounting Ceiling Wall Mounting (Kits included)

WIRELESS FEATURES

Wireless Standards IEEE 802.11ax ac n g b a

Frequency 2.4 GHz and 5 GHz

Signal Rate 5 GHz: Up to 2402 Mbps

2.4 GHz: Up to 1148 Mbps

MANAGEMENT

Omada App Yes

Centralized Management Omada Cloud-Based Controller

Omada Hardware Controller (OC300)

Omada Hardware Controller (OC200)

Omada Software Controller

Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)

Email Alerts Yes

LED ON OFF Control Yes

Management MAC Access Control Yes

SNMP v1, v2c, v3

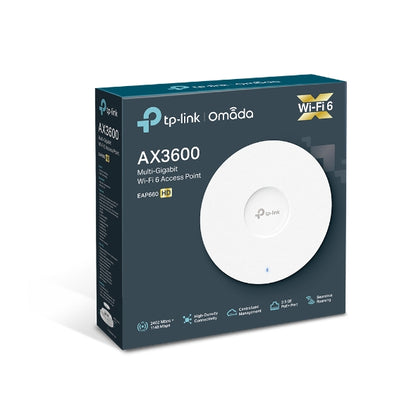

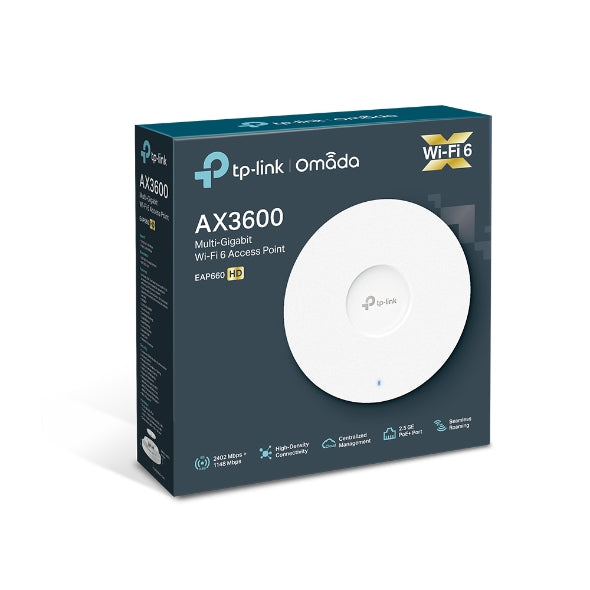

Package Contents EAP660 HD

Power Adapter

Ceiling Wall Mounting Kits

Installation Guide
