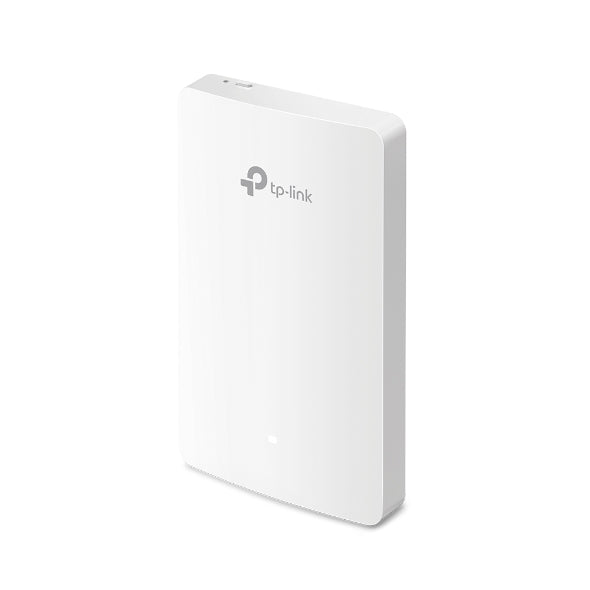

TP-Link EAP615-Wall AX1800 Wall Plate WiFi 6 Access Point

Superior WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.

High-Performance Connectivity: Guarantee higher network efficiency and lower latency.

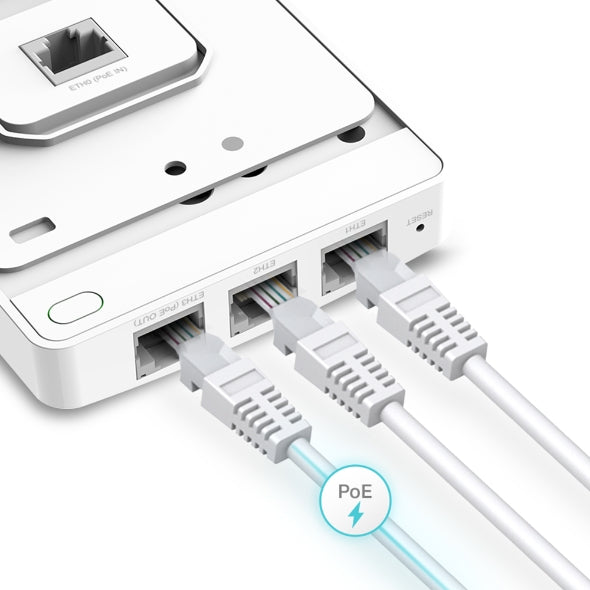

Four Gigabit Ports: 4 Gigabit Ethernet ports (1— uplink 3— downlink), with one downlink port supporting PoE pass-through to provide power for wired devices.¡

Centralised Management: Integrates into Omada SDN for cloud access and remote management.

Secure Guest Network: Along with multiple authentication options (SMS Facebook Wi-Fi Voucher, etc.) and abundant wireless security technologies.

Easy Installation and PoE Support: Easy-to-install design, compatible with 86 mm EU US standard junction box, and 802.3af at PoE support.

HARDWARE FEATURES

Interface Uplink: 1— 10 100 1000 Mbps Ethernet Port

Downlink: 3— 10 100 1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE input.The maximum power output for POE pass-through is 13 W (EU version) or 12 W (US version), based on laboratory testing.)

Physical Security Lock Yes

Button Reset

Power Supply 802.3af at PoE

Power Consumption EU: 10W (802.3at PoE, PoE Out off)

US: 11.5W (802.3at PoE, PoE Out off)

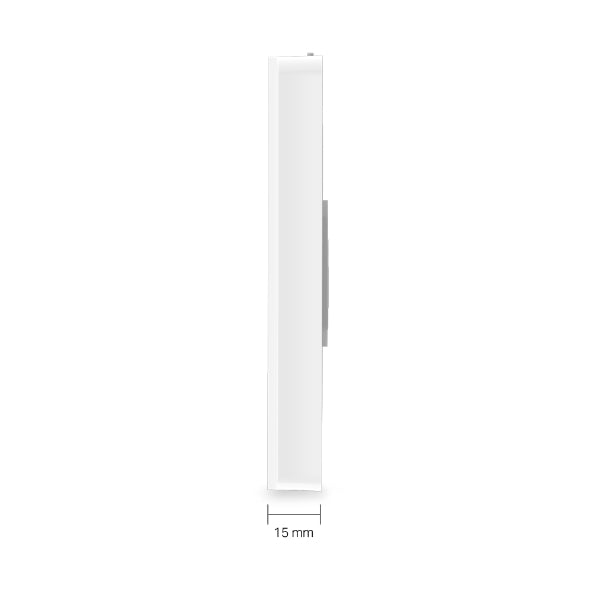

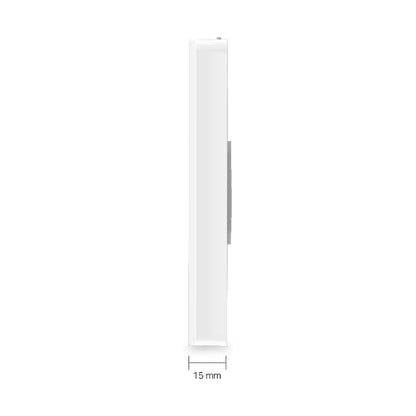

Dimensions 143 — 86 — 20 mm

Antenna 2 Dual-Band Antennas

2.4 GHz: 2— 3 dBi

5 GHz: 2— 4 dBi

Mounting Wall Plate Mounting

WIRELESS FEATURES

Wireless Standards IEEE 802.11ax ac n g b a

Frequency 2.4 GHz and 5 GHz

Signal Rate 5 GHz: Up to 1201 Mbps

2.4 GHz: Up to 574 Mbps

MANAGEMENT

Omada App Yes

Centralized Management Omada Hardware Controller (OC300)

Omada Hardware Controller (OC200)

Omada Software Controller

Cloud Access Yes (Through OC300, OC200, or Omada Software Controller)
