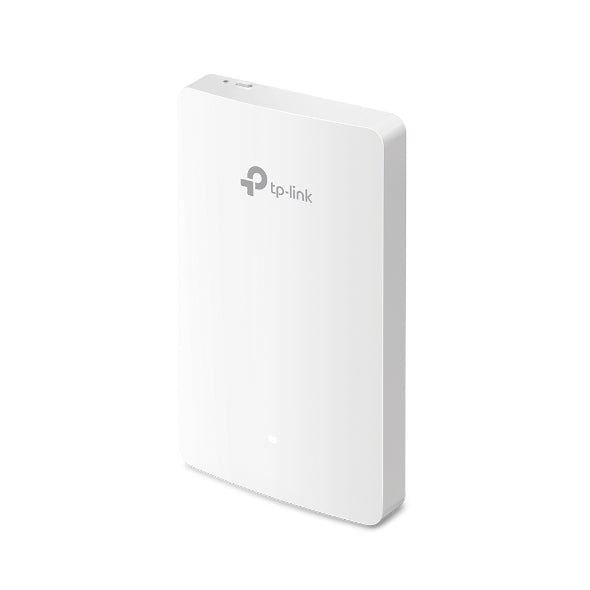

TP-Link EAP235-Wall Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point

Fast Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds with MU-MIMO.

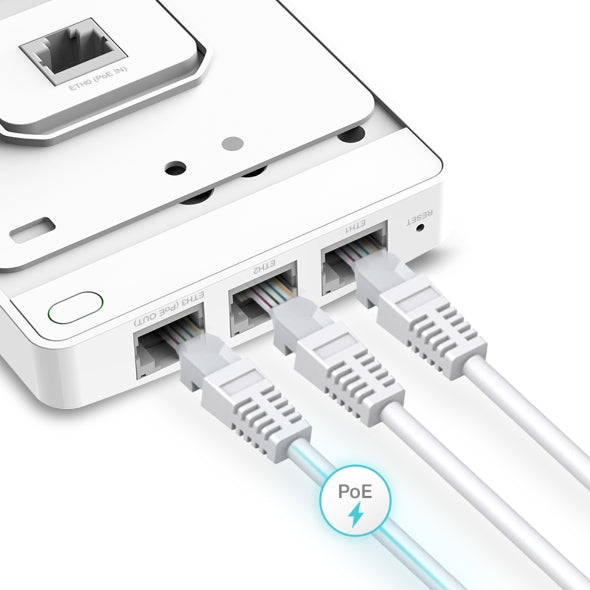

Four Gigabit Ports: 4 Gigabit Ethernet ports (1— uplink 3— downlink), with one downlink port supporting PoE pass-through to provide power for a wired device.

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)¡, Centralised Cloud Management, and Intelligent Monitoring.

Centralised Management: Cloud access and Omada app for ultra convenience and easy management.

Elegant Appearance: Ultra slimmest and conspicuous design blends into hotel rooms, hospitals, offices, dormitories and any other environments.

Easy Installation and PoE Support: Easy-mount construction, compatible with 86 mm EU US standard junction box, and 802.3af at PoE support.

Secure Guest Network: Along with multiple authentication options (SMS Facebook Wi-Fi Voucher, etc.) and abundant wireless security technologies.

Advanced Wireless Tech: Optimize network performance with MU-MIMO, Band Steering, and Beamforming technologies.

HARDWARE FEATURES

Interface Uplink: 10 100 1000 Mbps Ethernet Port1

Downlink: 10 100 1000 Mbps Ethernet Port3 (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE input and the maximum output is 13W.)

Physical Security Lock Yes

Button Reset

Power Supply 802.3af 802.3at PoE

Power Consumption 9.8 watts 24.4 watts (PoE Out Included)

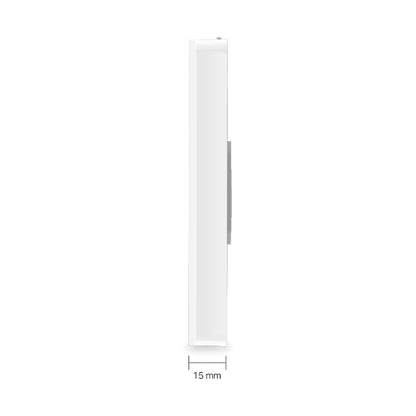

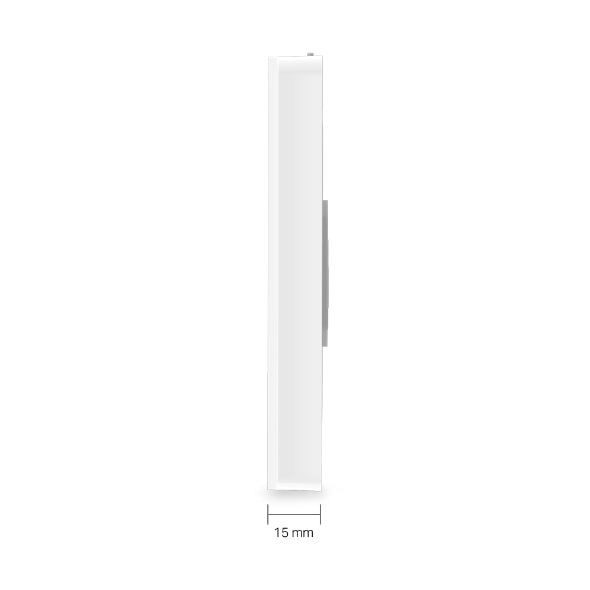

Dimensions 143 — 86 — 20mm (5.6 — 3.4 — 0.8 in)

Antenna 2 Dual-Band Antennas

2.4GHz: 24dBi

5GHz: 24dBi

Mounting Wall Plate Mounting

WIRELESS FEATURES

Wireless Standards IEEE 802.11a b g n ac

Frequency 2.4GHz and 5GHz

Signal Rate 5GHz: Up to 867Mbps

2.4GHz: Up to 300Mbps

Wireless Functions 16 SSIDs（Up to 8 SSIDs on each band）

Enable Disable Wireless Radio

Automatic Channel Assignment

Transmit Power Control (Adjust Transmit Power on dBm)

QoS(WMM)

MU-MIMO

Band Steering
