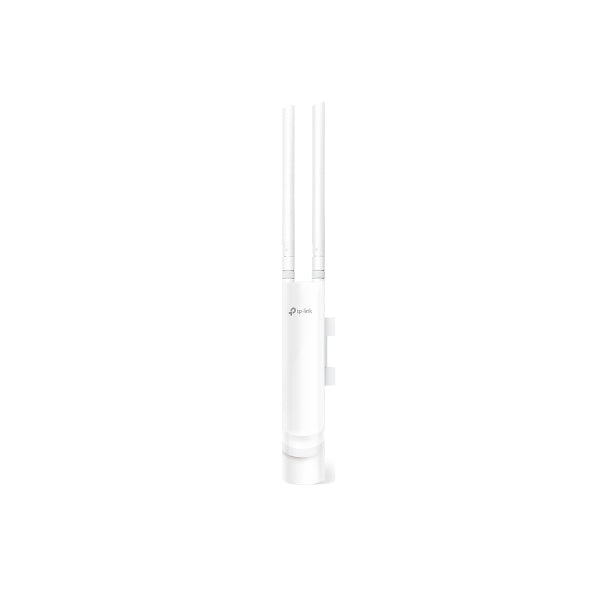

TP-Link EAP225-Outdoor Omada AC1200 1200Mbps Wireless MU-MIMO Gigabit Indoor Outdoor Access Point Passive PoE Weatherproof High Gain Long Range antena

Durable, weatherproof enclosure for outdoor Wi-Fi applications

Up to 1200Mbps with 2—2 MIMO technology

High transmission power and high gain antennas provide a long-range coverage area

Free Omada Controller software enables administrators easily manage hundreds of EAPs

Captive portal provides a convenient method for guest authentication

Facebook Wi-Fi and SMS anthentication help to boost your business

802.3af Passive PoE (PoE Adapter Included) compatible and simple mounting design allow for flexible deployment and convenient installation

HARDWARE FEATURES

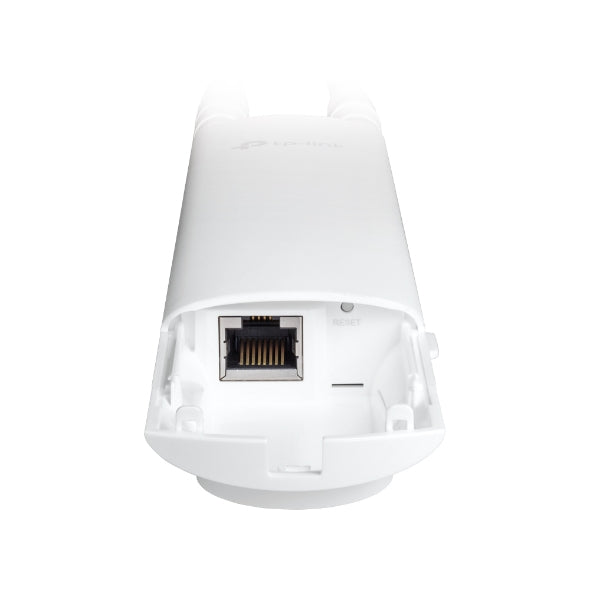

Interface Gigabit Ethernet (RJ-45)Port1(Support 802.3af PoE and Passive PoE)

Button Reset

Power Supply 802.3af PoE and 24 Passive PoE(PoE Adapter Included)

Power Consumption 10.5W

Antenna 2.4GHz: 2 3dBi, 5GHz: 2 4dBi

Dimensions ( W x D x H ) 8.5 — 1.8 — 1.1in. (215 — 46 — 27 mm)

Mounting Pole Wall Mounting (Kits included)

Hardware Watch Dog Yes

WIRELESS FEATURES

Wireless Standards IEEE 802.11a b g n ac

Frequency 2.4GHz, 5GHz

Signal Rate 802.11ac: 5G:6.5 Mbps to 867Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20 40 80) 2.4G:78Mbps to 300Mbps (MCS8-MCS9 VHT20 40, NSS=1 to 3)

802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20 40)

802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b: 1, 5.5, 11Mbps

802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Wireless Functions Multiple SSIDs（Up to 16 SSIDs, 8 for each band）

Enable Disable Wireless Radio

Automatic Channel Assignment

Transmit Power Control （Adjust Transmit Power on dBm）

QoS(WMM)

MU-MIMO

Airtime Fairness

Beamforming

Band Steering

Load Balance

Rate Limit

Reboot Schedule

Wireless Schedule

Wireless Statistics based on SSID AP Client

Wireless Security Captive Portal Authentication

Access Control

Wireless Mac Address Filtering

Wireless Isolation Between Clients

SSID to VLAN Mapping

Rogue AP Det
