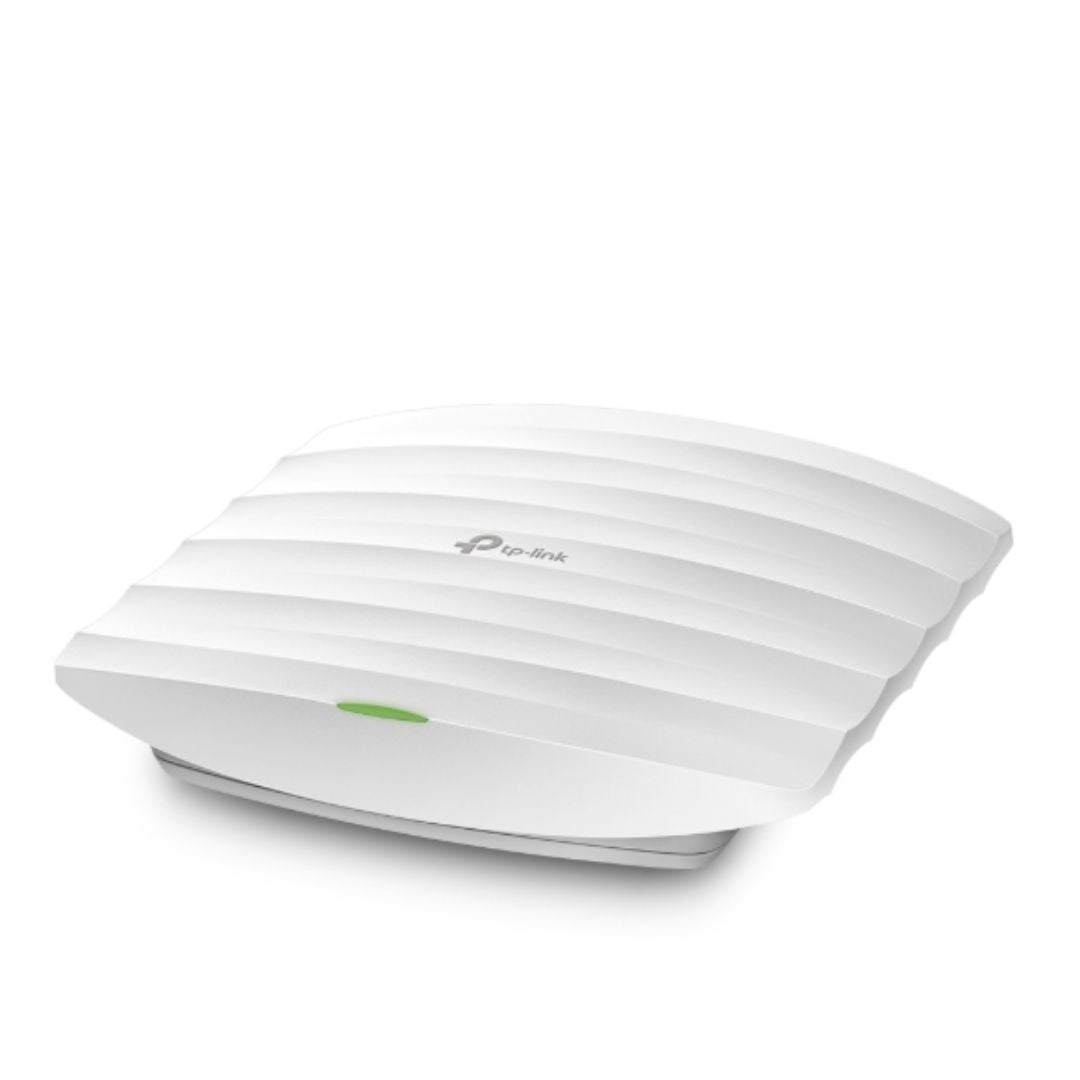

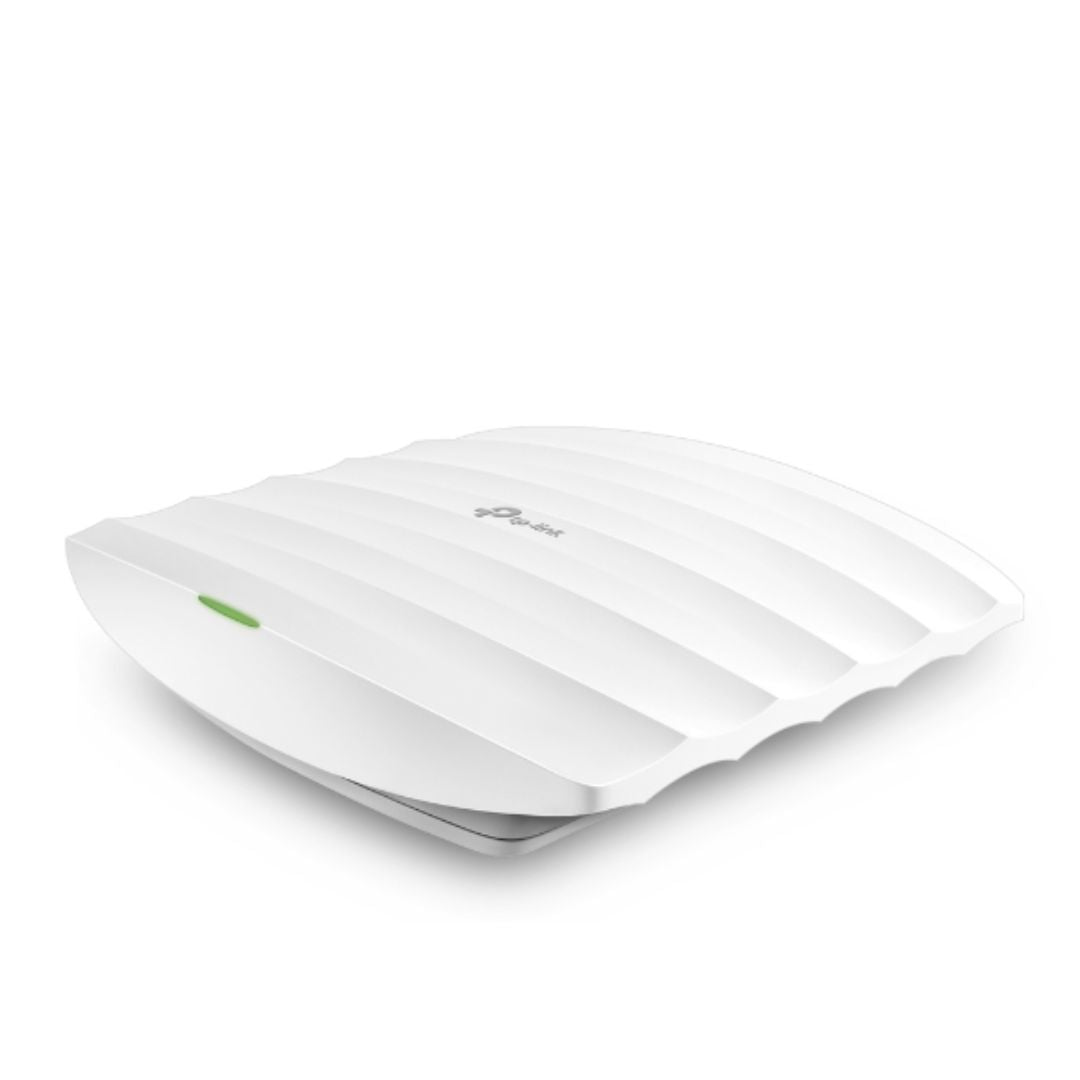

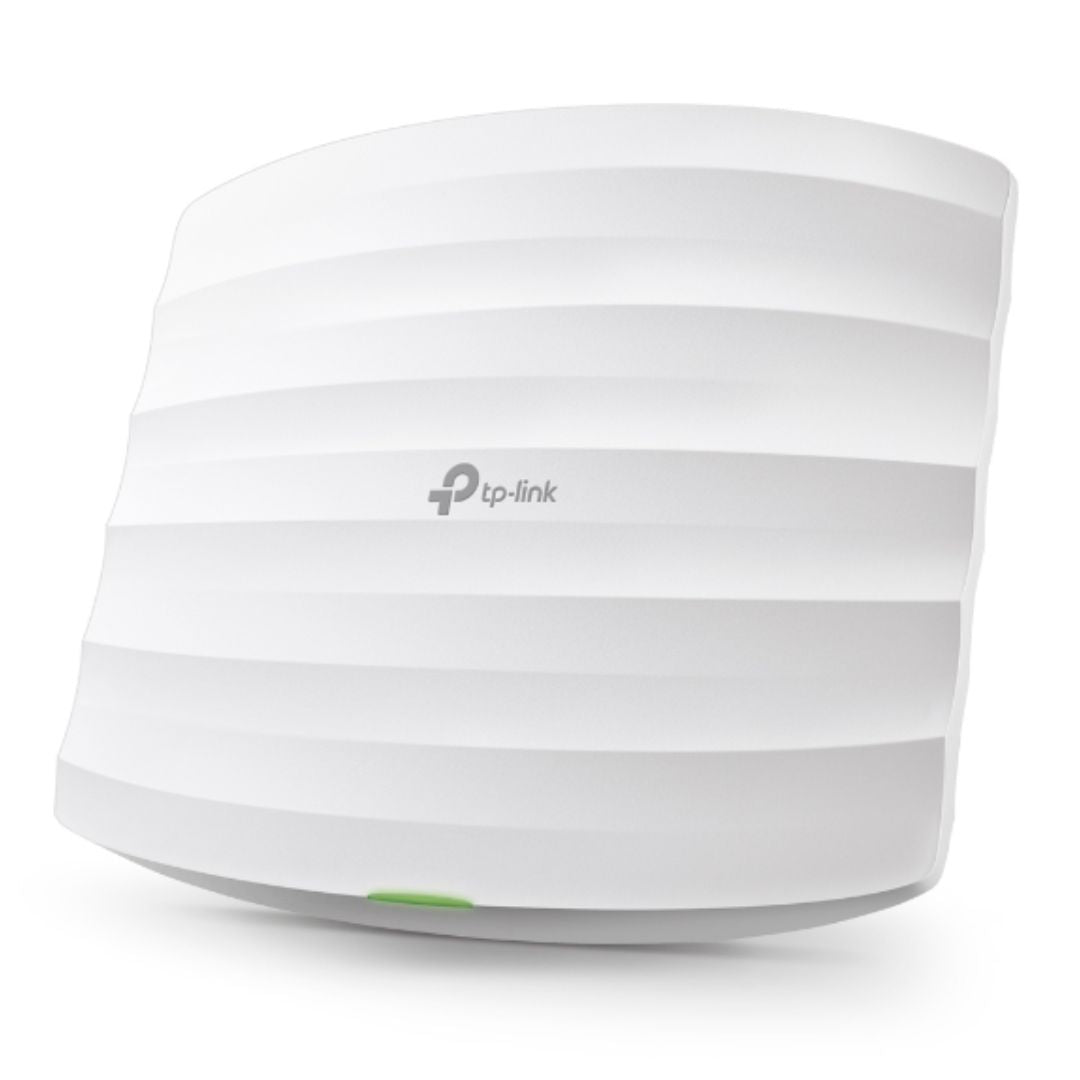

TP-Link EAP225 AC1200 Wireless Dual Band Gigabit Ceiling Wall Mount Access Point 1200Mbps PoE 1xGbps LAN Internal Omni Antenna Load balance Multi-SSID

Simultaneous 300Mbps on 2.4GHz and 867Mbps on 5GHz totals 1200Mbps Wi-Fi speeds

Free EAP Controller Software lets administrators easily manage hundreds of EAPs

Support Power over Ethernet(802.3af) for convenient and affordable installation

Captive portal provides a convenient method for guest authentication

Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections

HARDWARE FEATURES

Interface Gigabit Ethernet (RJ-45) Port 1（Support IEEE802.3af PoE）

Button Reset

Power Supply PoE or External 12VDC 1.5A Power Supply

Power Consumption 10.15 W

Antenna Type Internal Omni

2.4GHz: 2 4dBi

5GHz: 24dBi

Mounting Ceiling Wall Mounting (Kits included)

Physical Security Lock Kensington Lock Slot

Watch Dog Yes

WIRELESS FEATURES

Wireless Standards IEEE 802.11ac n g b a

Frequency 2.4GHz and 5GHz

Signal Rate 5GHz:Up to 867Mbps

2.4GHz:Up to 300Mbps

Wireless Functions Multiple SSIDs（Up to 16 SSIDs, 8 for each band）

Enable Disable Wireless Radio

Automatic Channel Assignment

Transmit Power Control （Adjust Transmit Power on dBm）

QoS(WMM)

Band Steering

Load Balance

Rate Limit

Reboot Schedule

Wireless Schedule

Wireless Statistics based on SSID AP Client

Wireless Security Captive Portal Authentication

Access Control

Wireless Mac Address Filtering

Wireless Isolation Between Clients

SSID to VLAN Mapping

Rogue AP Detection

802.1X Support

64 128 152-bit WEP WPA WPA2-Enterprise,

WPA-PSK WPA2-PSK

Transmission Power CE：

20dBm(2.4GHz)

23dBm(5GHz)

FCC:

27dBm(2.4GHz 5GHz)
