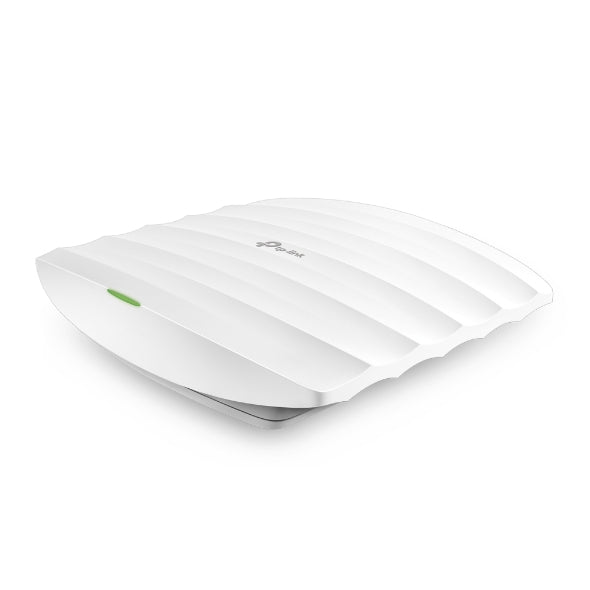

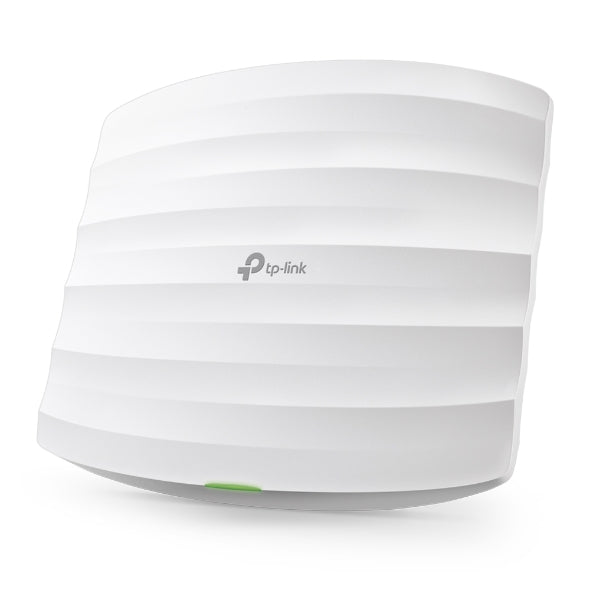

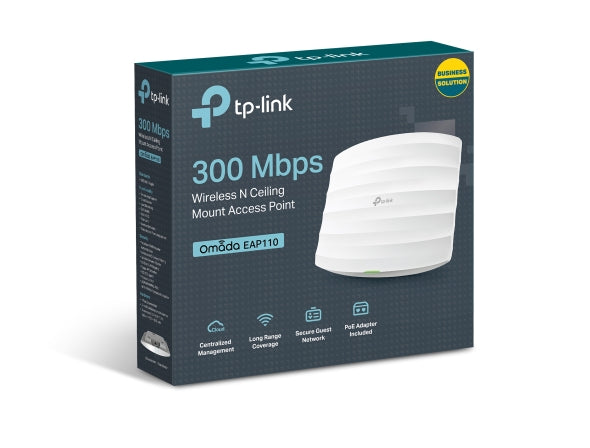

TP-Link EAP110 300Mbps Wireless N300 Ceiling Mount Access Point 1x1Gbps RJ45 PoE 1x Console Port 2x4dBi Omni Internal Antenna

EAP Controller Software enables administrators to easily manage hundreds of EAPs

Supports passive PoE for convenient installation up to 100meters

Ceiling mounting design with chassis make it easy to deploy on a wall or ceiling

Captive portal provides one convenient method of authentication for Wi-Fi guests

Multi-SSID divides multiple wireless networks for different users

Enterprise class Wi-Fi security help to decrease network security threats

HARDWARE FEATURES

Interface Fast Ethernet (RJ-45) Port 1（Support Passive PoE）

Button Reset

Power Supply 24VDC 1A Passive PoE Supply

Power Consumption 7.7W

Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Dimensions ( W x D x H ) 7.1 x 7.1 x 1.9 in. (18018047.5mm)

Antenna Type Internal 2 3dBi Omni

Mounting Ceiling Wall Mounting (Kits included)

Physical Security Lock Kensington Lock Slot

Watch Dog Yes

WIRELESS FEATURES

Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Frequency 2.4-2.4835GHz

Signal Rate 11n: Up to 300Mbps(dynamic)

11g: Up to 54Mbps(dynamic)

11b: Up to 11Mbps(dynamic)

Reception Sensitivity 300M: -71dBm 10pct PER

150M: -75dBm 10pct PER

54M: -78dBm 10pct PER

11M: -93dBm 8pct PER

6M: -92dBm 10pct PER

1M: -96dBm 8pct PER

Wireless Functions Multiple SSIDs （Up to 8 SSIDs）

Enable Disable Wireless Radio

Automatic Channel Assignment

Transmit Power Control （Adjust Transmit Power on dBm）

QoS(WMM)

Rate Limit

Reboot Schedule

Wireless Schedule

Wireless Statistics based on SSID AP Client

Wireless Security Captive Portal Authentication

Access Control

Wireless Mac Address Filtering

Wireless Isolation Between Clients

SSID to VLAN Mapping

Rogue AP Detection

802.1X Support

64 128 152-bit WEP WPA WPA2-Enterprise,WPA-PSK WPA2-PSK

Transmission Power CE:

20dBm

FCC:

26dBm

MANAGEMENT

EAP Controller Software Yes

Email Alerts Yes
