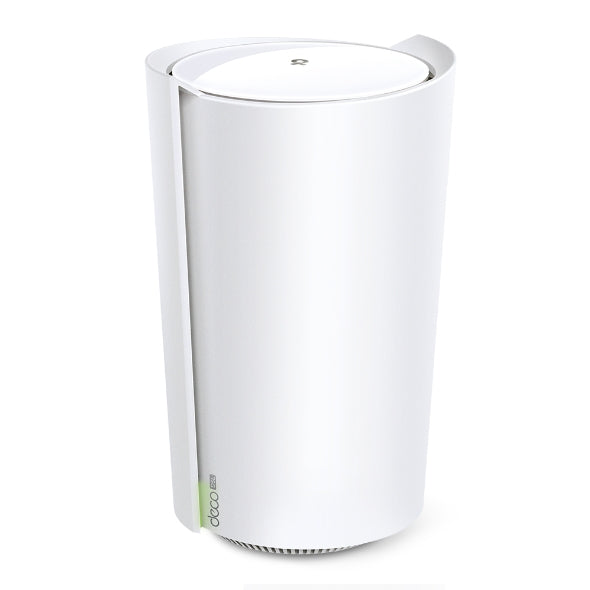

TP-Link Deco X73-DSL AX5400 VDSL Whole Home Mesh Wi-Fi 6 System

VDSL Modem Router Mesh WiFi - Save a modem, and gain a better WiFi experience

Super VDSL2 Speed - Supports Profile 35b tech to deliver downstream up to 350 Mbps

Superior WiFi 6 speeds up to 5.4 Gbps - 4804Mbps (5 GHz) and 574 Mbps (2.4 GHz) dual-band WiFi with WiFi 6 technology

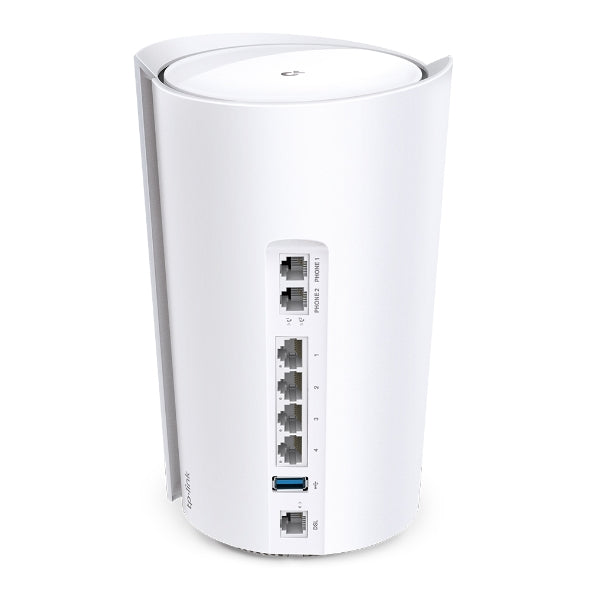

Fully Gigabit Ethernet - 4x Gigabit WAN LAN Ethernet ports provide flexible internet access at warp speed

3 RJ Ports: 1 DSL 2 FXS

TP-Link HomeShield - Real-time IoT and network protection, robust Parental Controls, and comprehensive reports§

True Seamless Roaming Mesh WiFi - Walk through your home and stay connected with the fastest possible speeds

WIRELESS

Standards Wi-Fi 6

IEEE 802.11ax ac n a 5 GHz

IEEE 802.11ax n b g 2.4 GHz

WiFi Speeds AX5400

5 GHz: 4804 Mbps (802.11ax)

2.4 GHz: 574 Mbps (802.11ax)

WiFi Range 1-3 Bedroom Houses (1-pack)

TP-Link Mesh Technology

Optional Ethernet backhaul work together to link Deco units to provide seamless coverage

4— Antennas (Internal)

Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming

Concentrates wireless signal strength towards clients to expand WiFi range

WiFi Capacity High

Dual-Band

Distribute devices to different bands for optimal performance

MU-MIMO

Simultaneously communicates with multiple MU-MIMO clients

OFDMA

Simultaneously communicates with multiple WiFi 6 clients

4 Streams

More than enough bandwidth for connected devices

Working Modes DSL (only on Deco X73-DSL)

Router

Access Point

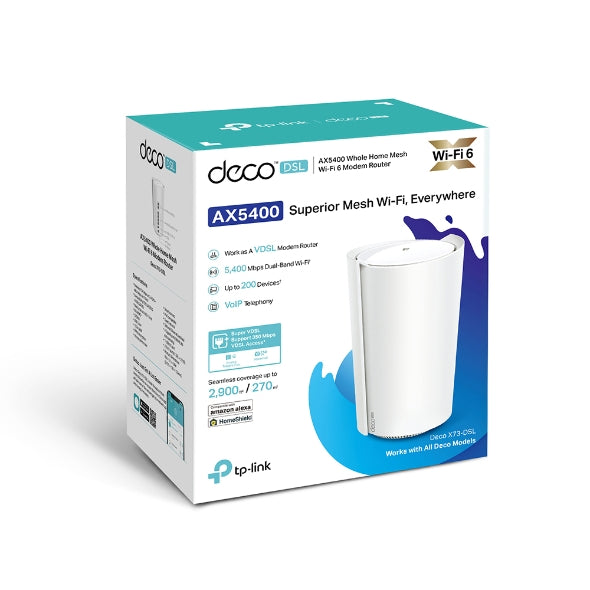

1-pack

1 Deco X73-DSL Unit

1 RJ45 Ethernet Cable

2 RJ11 DSL Cables

1 External DSL Splitter

1 Power Adapter

1 Telephony Feature Guide

Quick Installation Guide
