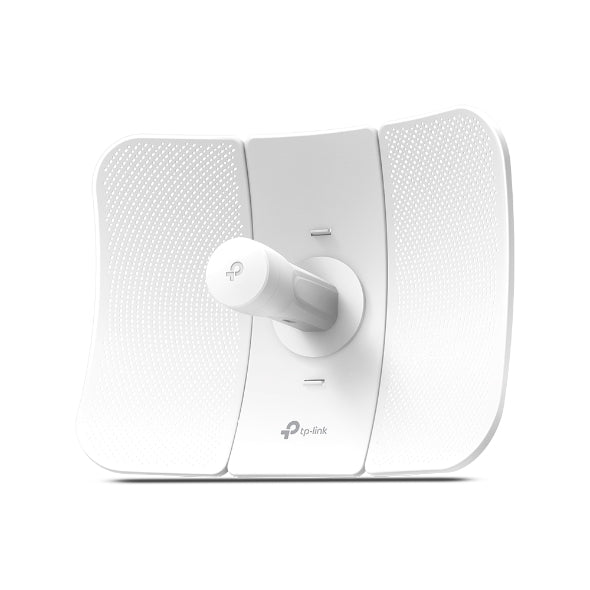

TP-Link CPE710 5GHz AC 867Mbps 23dBi Outdoor CPE

802.11ac for up to 867Mbps on 5GHz wireless data rate

23dBi high-gain directional 2—2 MIMO, ideal for long-distance application

Excellent beam directivity, improved latency and noise cancellation

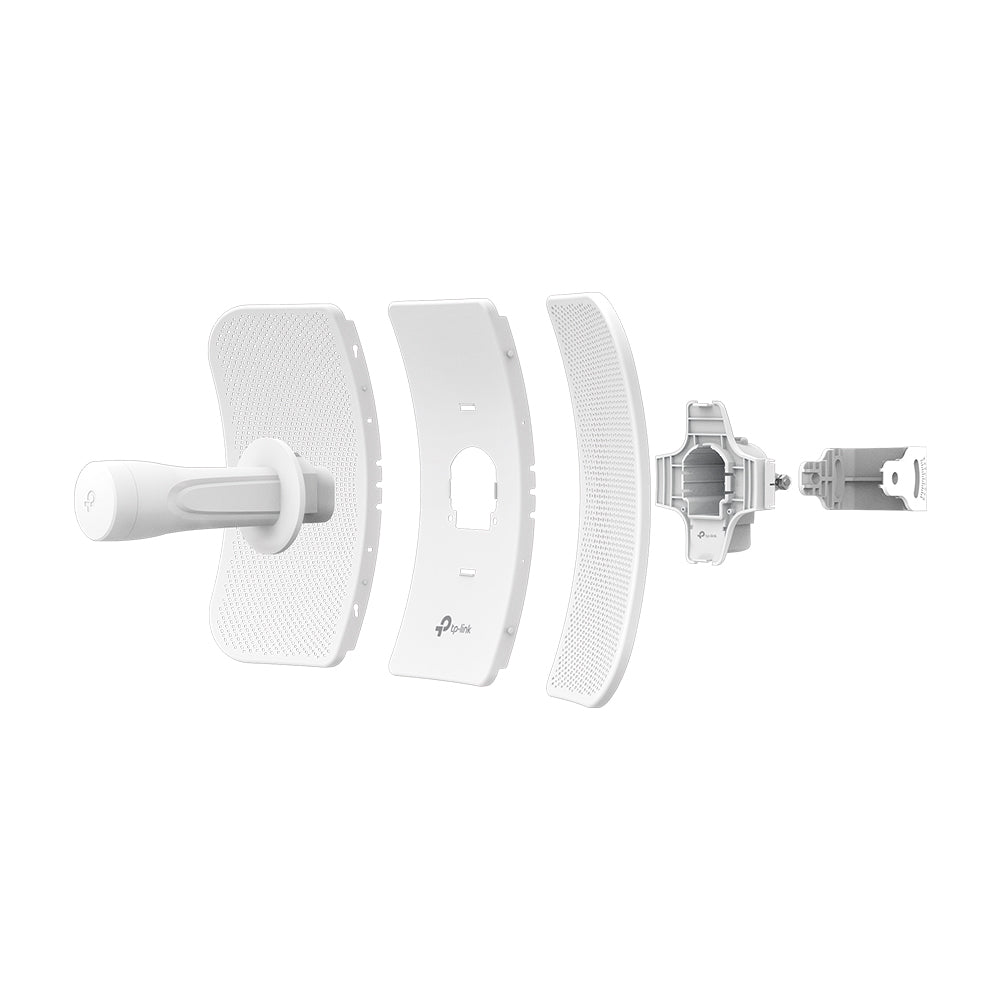

Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE710 stable even in strong winds

Durable IP65 weatherproof enclosure along with 15kV ESD and 6kV lightning protection ensures all-weather suitability

Pharos Control gives administrators a free, centralized management system

Passive PoE supports to allow flexible deployment and convenient installation

HARDWARE FEATURES

Processor Qualcomm 750MHz CPU, MIPS 74Kc

Memory 128 MB DDR2 RAM, 16 MB Flash

Interface 1 10 100 1000 Mbps Shielded Ethernet Port (LAN POE)

1 Reset Button

Power Supply Passive Power over Ethernet via LAN (4,5pins -7,8pins)

Voltage range: 16-27V DC

Dimensions ( W x D x H ) 366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.)

Antenna Gain 23 dBi

Antenna Beamwidth 9 degree (Azimuth) 7 degree (Elevation)

Protection 15 KV ESD Protection

6 KV Lightning Protection

Enclosure Material: Outdoor PC stabilized plastic

Weatherproof: IP65 water and dust proof design

WIRELESS FEATURES

Wireless Standards IEEE 802.11a n ac

Wireless Speeds Up to 867 Mbps (80 MHz, Dynamic)

Up to 400 Mbps (40 MHz, Dynamic)

Up to 173.4 Mbps (20 MHz, Dynamic)

Frequency 5.15~5.85 GHz

Transmit Power Max. 27 dBm (Adjustable power by 1dBm)

SOFTWARE FEATURES

Network Configuration WAN: Static Dynamic PPPoE

LAN: Static Dynamic DHCP

Forwarding: ALG UPnP Virtual Server Port Trigger

Security: SPI Firewall Ping Forbidden DoS Protection

Access Control

Static Routing

Bandwidth Control

IP MAC Binding

POE ADAPTER FEATURES

Dimensions(W x D x H) 85.8—43.9—29.7 mm
