TP-Link CPE610 5GHz 300Mbps 23dBi Outdoor CPE MIMO antenna Access Point Client Bridge Repeater AP Router AP Client Router Passive PoE Weatherproof

Up to 300Mbps on 5GHz wireless data rates

23dBi high-gain directional 2—2 MIMO antenna and a dedicated metal reflector, ideal for long-distance application

Excellent beam directivity, improved latency and noise cancellation

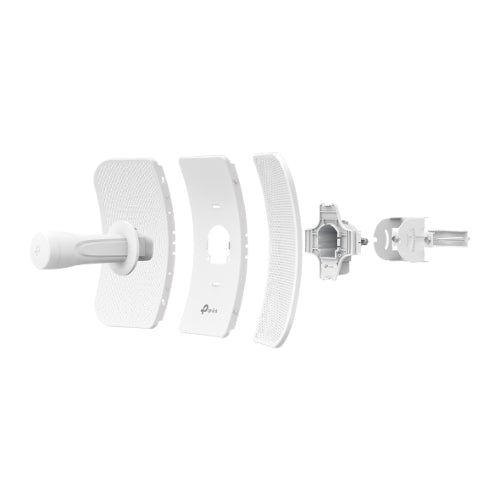

Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE610 stable even in strong winds

Durable IP65 weatherproof enclosure along with 15 kV ESD and 6 kV lightning protection ensures all-weather suitability

TP-Link Pharos MAXtream TDMA technology improves throughput, capacity and latency performance

Pharos Control gives administrators a free, centralized management system

AP Client Bridge Repeater AP Router AP Client Router (WISP) operation modes

Passive PoE supports to allow flexible deployment and convenient installation

HARDWARE FEATURES

Processor Qualcomm 560MHz CPU, MIPS 74Kc

Memory 64MB DDR2 RAM,8MB Flash

Interface 1 1 10 100Mbps Shielded Ethernet Port (LAN POE)

1 Reset Button

Power Supply Passive Power over Ethernet via LAN (4,5pins -7,8pins)

Voltage range: 16-27VDC

Dimensions 360 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.) (No mount)

Antenna Gain 23dBi

Antenna Beamwidth 9 degree(Azimuth), 7 degree(Elevation)

Protection 15KV ESD Protection

6KV Lightning Protection

Enclosure Material: Outdoor PC stabilized plastic

Weatherproof: IP65 water and dust proof design

WIRELESS FEATURES

Wireless Standards IEEE 802.11a n

Proprietary Protocol TDMA Mode (with Pharos MAXtream enabled)

Wireless Speeds Up to 300Mbps (40MHz,Dynamic)

Up to 144.4Mbps (20MHz,Dynamic)

Up to 72.2Mbps (10MHz,Dynamic)

Up to 36.1Mbps (5MHz,Dynamic)

Frequency 5.15~5.85GHz

Transmit Power Max. 29dBm 790mW (Adjustable power by 1dBm)

SOFTWARE FEATURES

Operating Modes AP Client Bridge Repeater AP Router AP Client Router (WISP Client)
