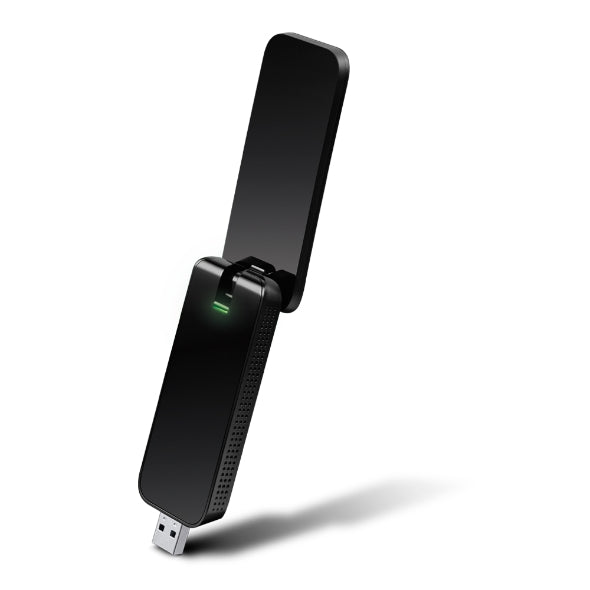

TP-Link Archer T4U AC1300 Wireless Dual Band USB Adapter 2.4GHz (400Mbps) 5GHz (867Mbps) 1xUSB3 802.11ac Omni Directional Antenna WPS button USB Ext Cable

Ultra-fast Wi-Fi “ 1300Mbps wireless speeds (400Mpbs on the 2.4GHz band and 867Mbps on the 5GHz band) with support for the next generation 802.11ac Wi-Fi standard

Dual Band Wireless - 2.4GHz and 5GHz bands for flexible connectivity

High gain antennas “ Improved range, signal quality and transmission performance

MU-MIMO “Delivers highly efficient wireless connection

Super Speed USB 3.0 Port - Up to 10x faster transfer speeds than USB 2.0

WPS Button - Easy wireless security encryption at the push of the WPS button

HARDWARE FEATURES

Interface USB 3.0

Button WPS button

Dimensions ( W x D x H ) 3.64—1.24—0.55 in. (92.47—31.55—13.9mm)

Antenna 2 High Gain External Antennas

Antenna Type Omni Directional

WIRELESS FEATURES

Wireless Standards IEEE 802.11ac, IEEE 802.11a,

IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Frequency 5GHz

2.4GHz

Signal Rate 5GHz

11ac: Up to 867Mbps(dynamic)

11n: Up to 300Mbps(dynamic)

11a: Up to 54Mbps(dynamic)

2.4GHz

11n: Up to 400Mbps(dynamic)

11g: Up to 54Mbps(dynamic)

11b: Up to 11Mbps(dynamic)

Reception Sensitivity 5GHz：

11a 6Mbps: -91dBm

11a 54Mbps: -77dBm

11nHT20：-74dBm

11nHT40：-71dBm

11ac HT20: -70dBm

11ac HT40: -66dBm

11ac HT80: -62dBm

2.4GHz:

11b 11Mbps: -86dBm

11g 54Mbps: -74dBm

11n HT20: -72dBm

11n HT40: -70dBm

Transmit Power 20dBm (EIRP)

Wireless Modes Ad-Hoc Infrastructure mode

Wireless Security Support 64 128 bit WEP, WPA-PSK WPA2-PSK

Modulation Technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM

OTHERS

Certification CE, FCC, RoHS

Package Contents AC1300 High Gain Wireless MU-MIMO USB Adapter Archer T4U

Quick Installation Guide

Resource CD

System Requirements Windows 10 8.1 8 7 XP, Mac OS X 10.9-10.13

Environment Operating Temperature: 0„ƒ~40„ƒ (32„‰~104„‰)

Storage Temperature: -40„ƒ~70„ƒ (-40„‰~158„‰)

Operating Humidity: 10pct~90
