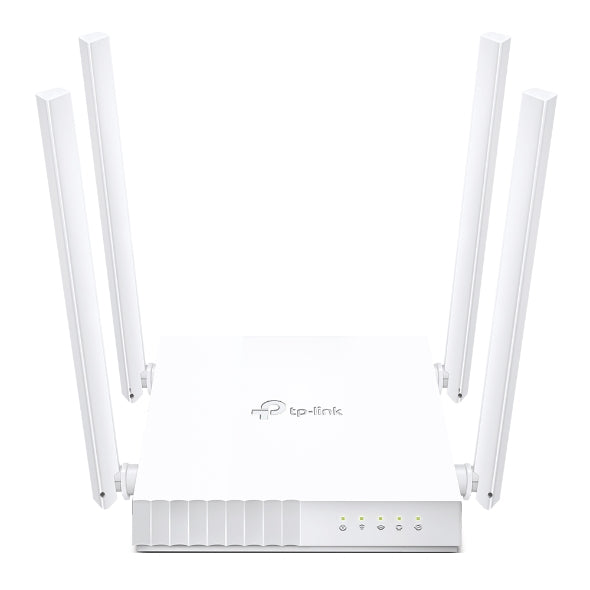

TP-Link Archer C24 AC750 Dual-Band Wi-Fi Router

High-Speed Wi-Fi”AC750 dual-band is ideal for HD video streaming, high-speed downloading.

Far-Reaching Coverage”4— antennas deliver far-reaching Wi-Fi and reliable connections.

Multi-Mode 3 in 1”Supports Router, Access Point, and Range Extender to add flexibilities.

Parental Controls”Manages when and how connected devices can access the internet.

Guest Network”Provides separate access for guests while securing the host network.

Smooth HD Streaming”Supports IGMP Proxy Snooping, Bridge and Tag VLAN to optimize IPTV streaming.

IPv6 Supported”Compatible with the IPv6 (the latest Internet Protocol version 6).

Compact and Mountable”Designed to conserve space and complement any d©cor.

WIRELESS

Standards Wi-Fi 5

IEEE 802.11ac n a 5 GHz

IEEE 802.11n b g 2.4 GHz

WiFi Speeds AC750

5 GHz: 433 Mbps (802.11ac)

2.4 GHz: 300 Mbps (802.11n)

WiFi Range 2 Bedroom Houses

4— Fixed Antennas

Multiple antennas form a signal-boosting array to cover more directions and large areas

WiFi Capacity Medium

Dual-Band

Allocate devices to different bands for optimal performance

Working Modes Router Mode

Access Point Mode

Range Extender Mode

HARDWARE

Processor Single-Core CPU

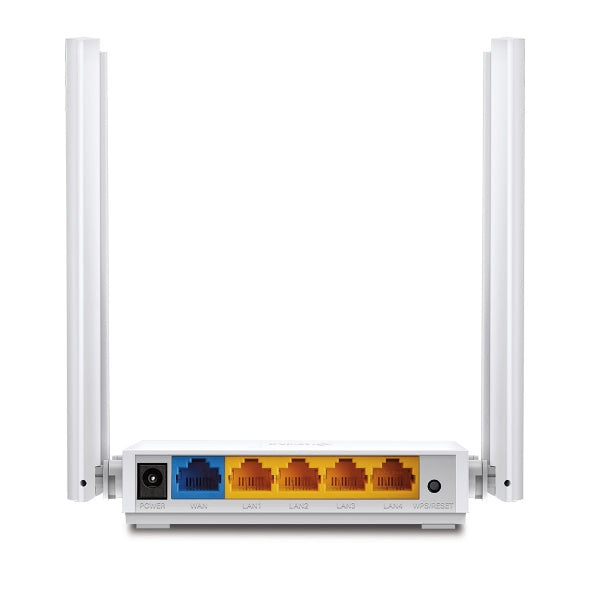

Ethernet Ports 1— 10 100 Mbps WAN Port

4— 10 100 Mbps LAN Ports

Buttons WPS Button

Reset Button

Power 5 V Ž“ 0.6 A

SECURITY

WiFi Encryption WEP

WPA

WPA2

WPA WPA2-Enterprise (802.1x)

Network Security SPI Firewall

Access Control

IP MAC Binding

Application Layer Gateway

Guest Network 1— 5 GHz Guest Network

1— 2.4 GHz Guest Network

PHYSICAL

Dimensions (W—D—H) (115 x 106.7 x 24.3 mm)

WiFi Reception Sensitivity 5GHz:

11a 54M: -76dBm 11ac VHT20 MCS8: -71dBm

11ac VHT40 MCS9: -66dBm 11ac VHT80 MCS9:

-62dBm

2.4GHz:

11g 54M: -76dBm11n HT20 MCS7: -73dBm

11n HT40 MCS7: -71dBm
