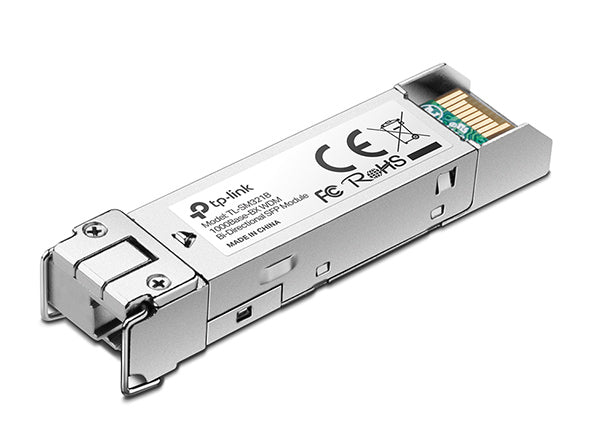

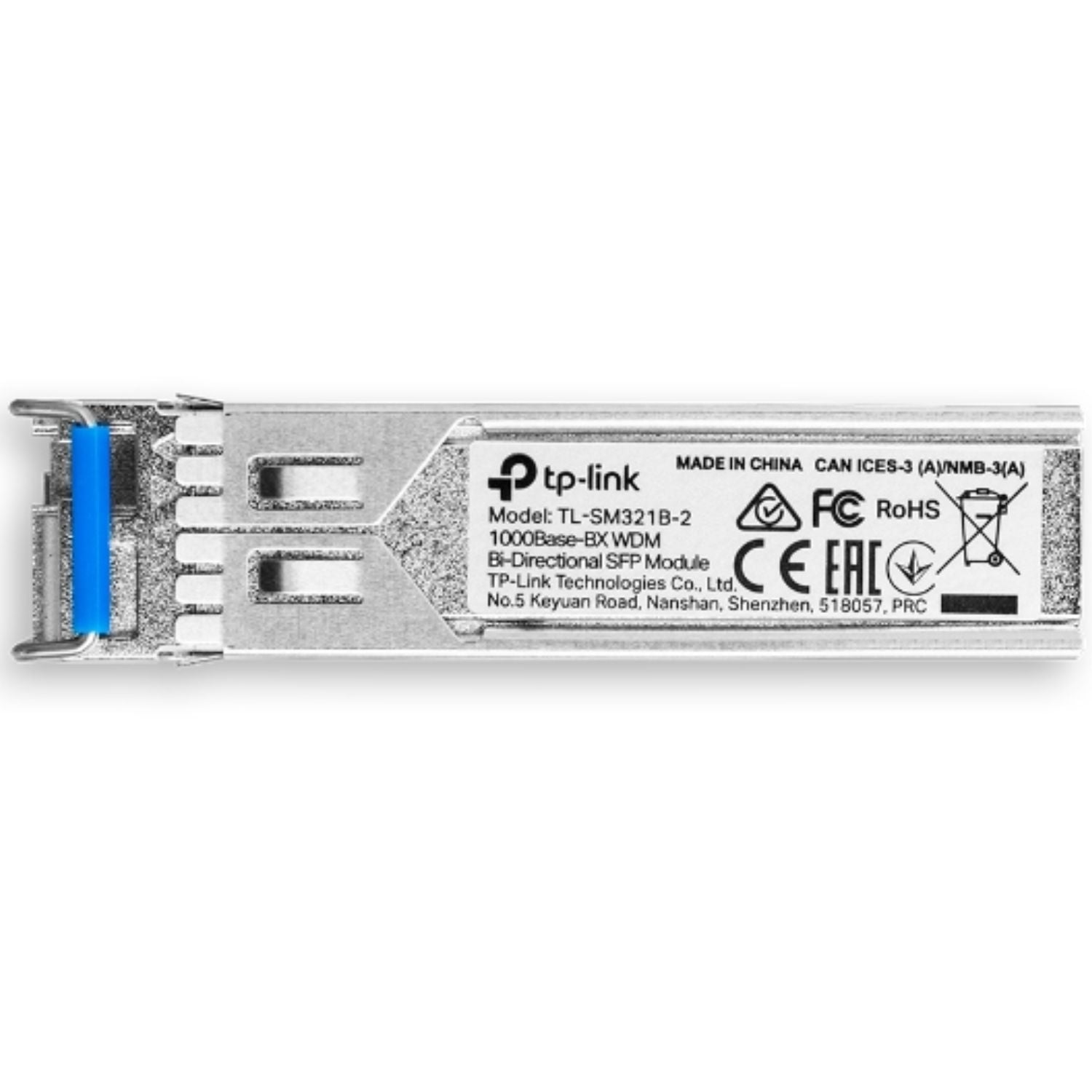

TP-Link 1000Base-BX WDM Bi-Directional SFP Module (TL-SM321B-2)
Adopts the latest standard 1000Base-BX
Up to 2 km transmission distance in 9 125 μm SMF (Single-Mode Fiber)
Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)
Supports Digital Diagnostic Monitoring (DDM)
Supports Hot Swappable
HARDWARE FEATURES
DDM Yes
SFP-MSA Yes
Hot Swappable Yes
MEDIA CONVERTER MODULE
Standards and Protocols IEEE 802.3z, TCP IP
Wave Length Tx: 1310 nm
Rx: 1550 nm
Power Supply 3.3V
Safety Emission FCC, CE
Cabel Single-Mode Fiber
Fiber Type 9 125 μm Single-Mode
Max. Cable Length 10 KM
Data Rate 1.25 Gbps
Port Type LC Simplex
Environment Operating Temperature: 070 degreeC (32158 degreeF)
Storage Temperature: -4085 degreeC ( -40185 degreeF)
Operating Humidity: 1090pct RH, Non-Condensing
Storage Humidity: 590pct RH, Non-Condensing
