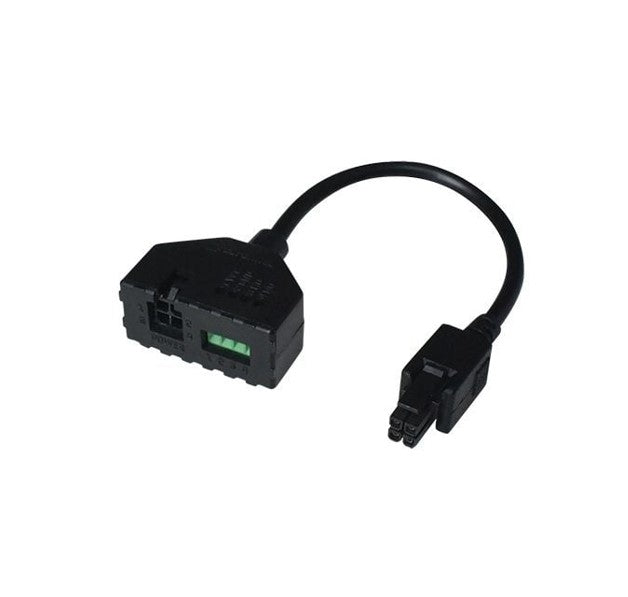

This 4-PIN power connector adapter allows you to easily access I O functionality for compatible Teltonika Networks devices. It features a standard 4-PIN to 4-PIN power connection with an additional terminal for configurable digital inputs and outputs.

TECHNICAL DATA

GENERAL

Input connector 4-pin, 3 mm pitch and 4-way screw terminal block

Output connector 4-pin, 3 mm pitch

Cable 4 x 0.20 mm² (24 AWG), 100 mm

Screwdriver type Micro slotted

Weight 15 g.

CONNECTION DATA

Conductor cross section solid flexible 0.14 - 0.50 mm² (26 - 20 AWG)

Conductor cross section flexible, with ferrule, with plastic sleeve 0.25 - 0.30 mm² (23 - 22 AWG)

Pinout 1 Pin: Power

2 Pin: Ground -
