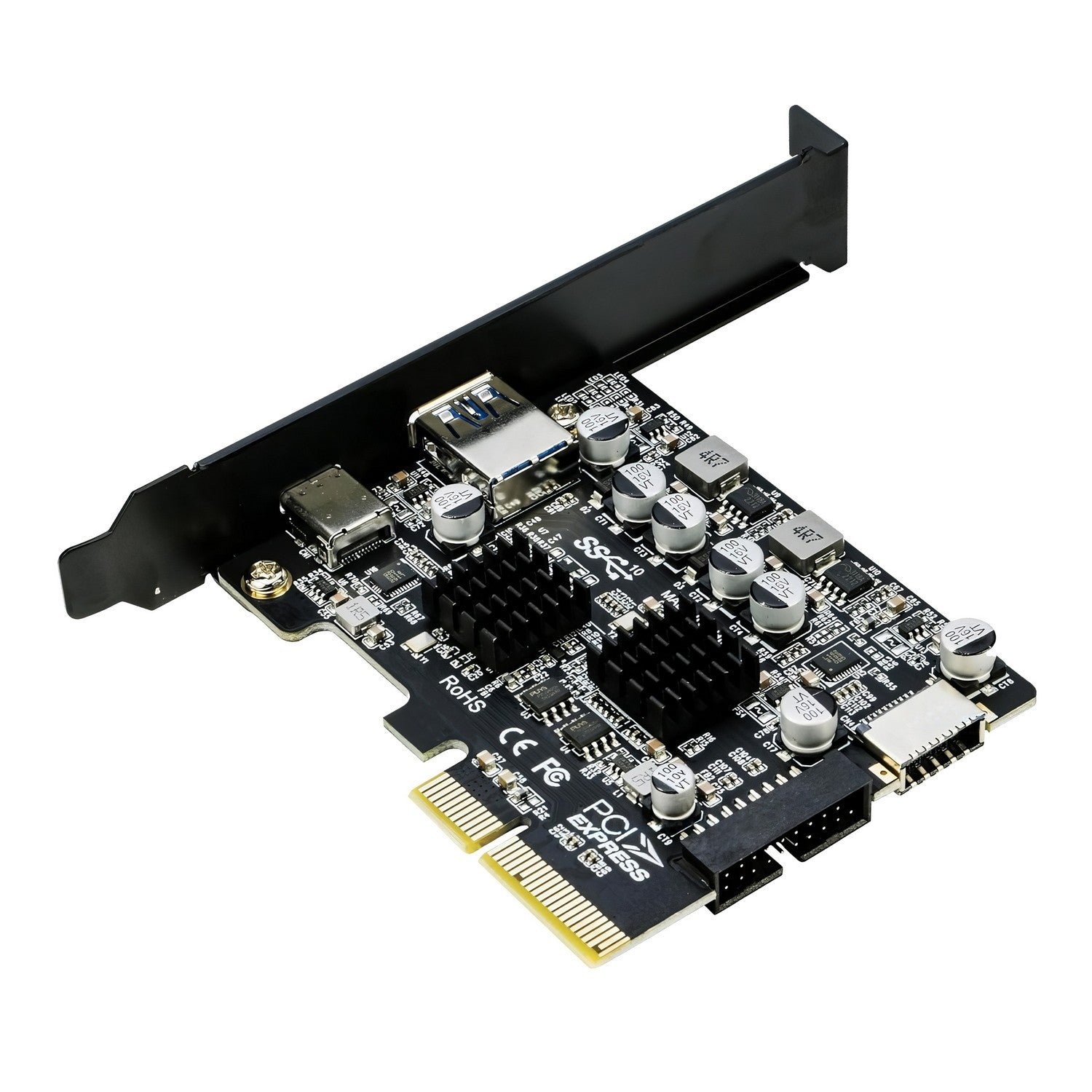

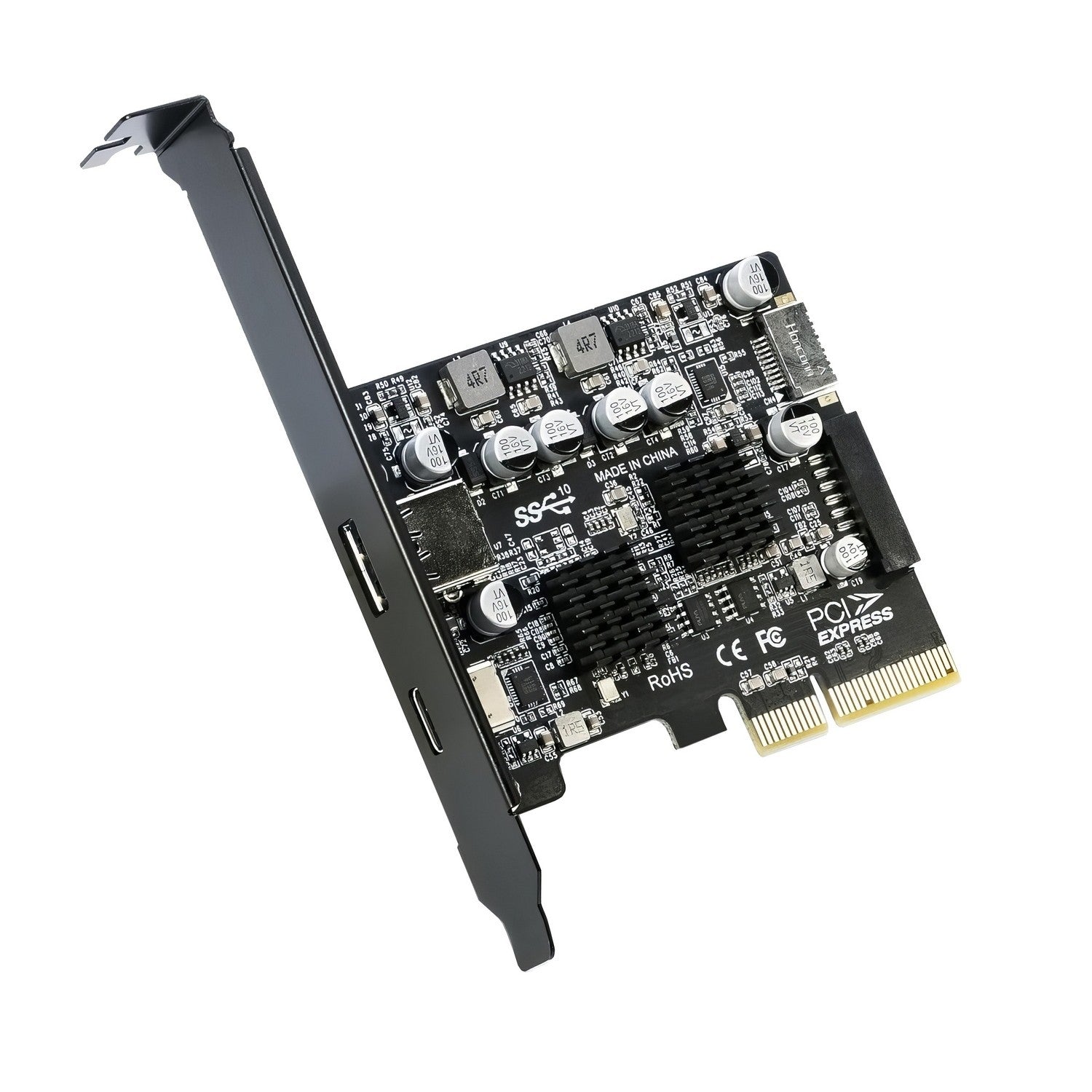

Simplecom EC315 PCIe x4 to 4-Port USB 3.2 Gen II 10Gbps Type-C and Type-A with Front Panel USB 3.0 and USB-C Key-A Expansion Card

Quick Overview

- PCIe x4 expansion card, also compatible PCIe x8 or x16 slot

- USB 3.2 Gen 2 interface supports data transfer rates of up to 10Gbps

- Integrated PCIe to USB 3.2 Gen 2 controller and USB 3.2 Gen 2 hub controller

- The USB ports on the rear panel and front panel can operate simultaneously

- Two rear panel connectors, 1x USB-C and 1x USB-A port

- Two internal connectors for front panel, USB 3.0 19 20-Pin and Key-A (Type-E) connectors

- Backwards compatible with USB 2.0 and USB 1.1 devices

- Built-in over current protection on each USB port

- Powered by PCIe, no external power required

- Built-in PCIe 12V to 5V modules provide power to USB ports

- Plug and play, automatic installation on Windows

Specifications

PCIe Interface: PCIe 3.0 x4, compatible PCIe x8 or x16 slot

USB Standard: USB 3.2 Gen 2 10Gbps

Rear Panel Connectors: 1x USB-A, 1x USB-C

Internal Connectors for Front Panel: 1x USB 3.0 19 20Pin socket (Front USB-A), 1x Key-A (Type-E) connector (Front USB-C)

USB Speed Support: SuperSpeed (10Gpbs), SuperSpeed (5Gpbs), HiSpeed (480Mbps), Full Speed (12Mbps)

USB Power Source: Integrated PCIe 12V to 5V module

Operating System Support: Windows 7 and above

Package Contents

1x USB 3.2 Gen 2 Expansion Card

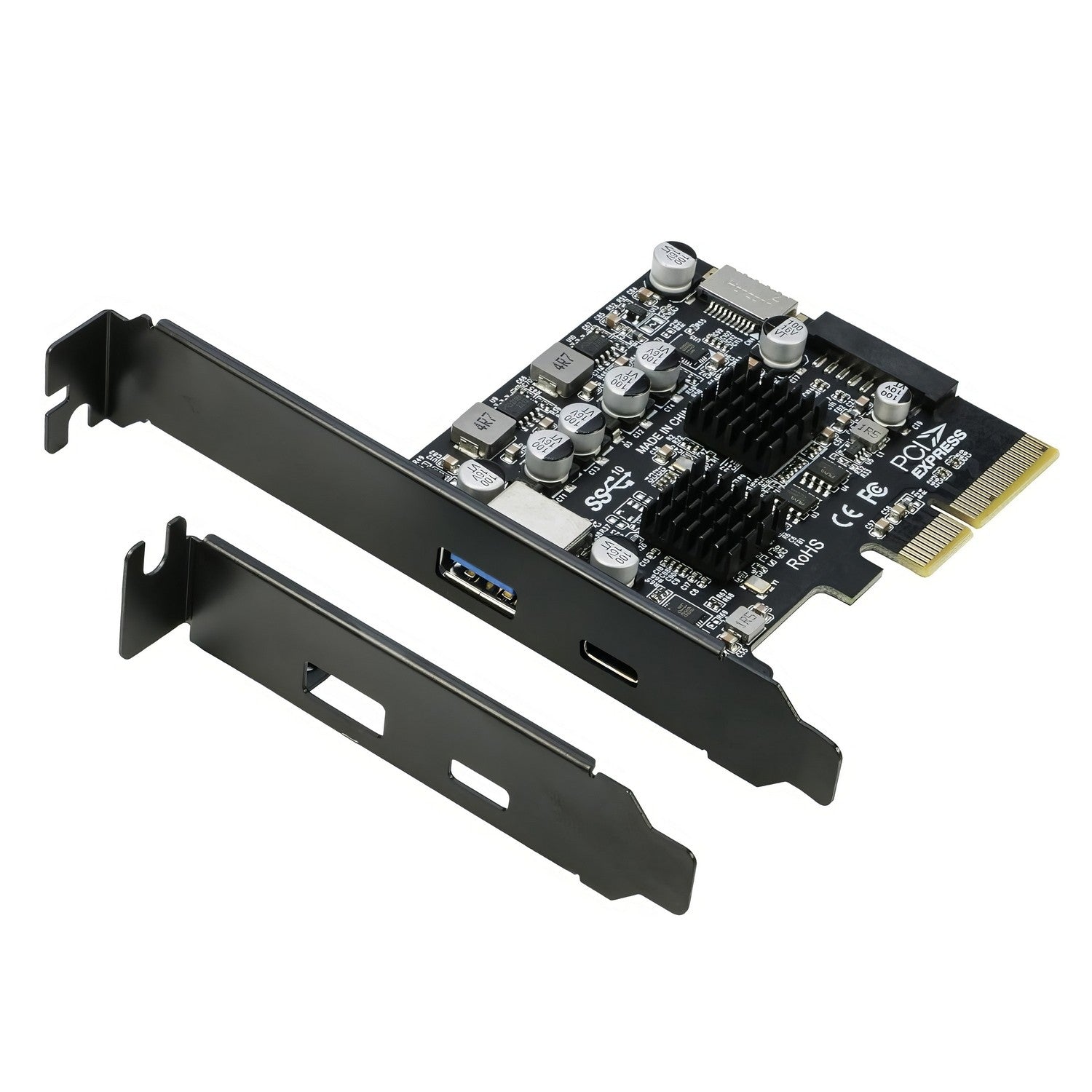

1x Low Profile Bracket

System Requirement

1x available PCle 3.0 or higher x4 x8 x16 slot on motherboard, please note PCIe 1.0 or 2.0 x4 slot bandwidth is lower than 10Gbps

Plug and play for Windows 8 and above operating system, Windows 7 system need to install driver
