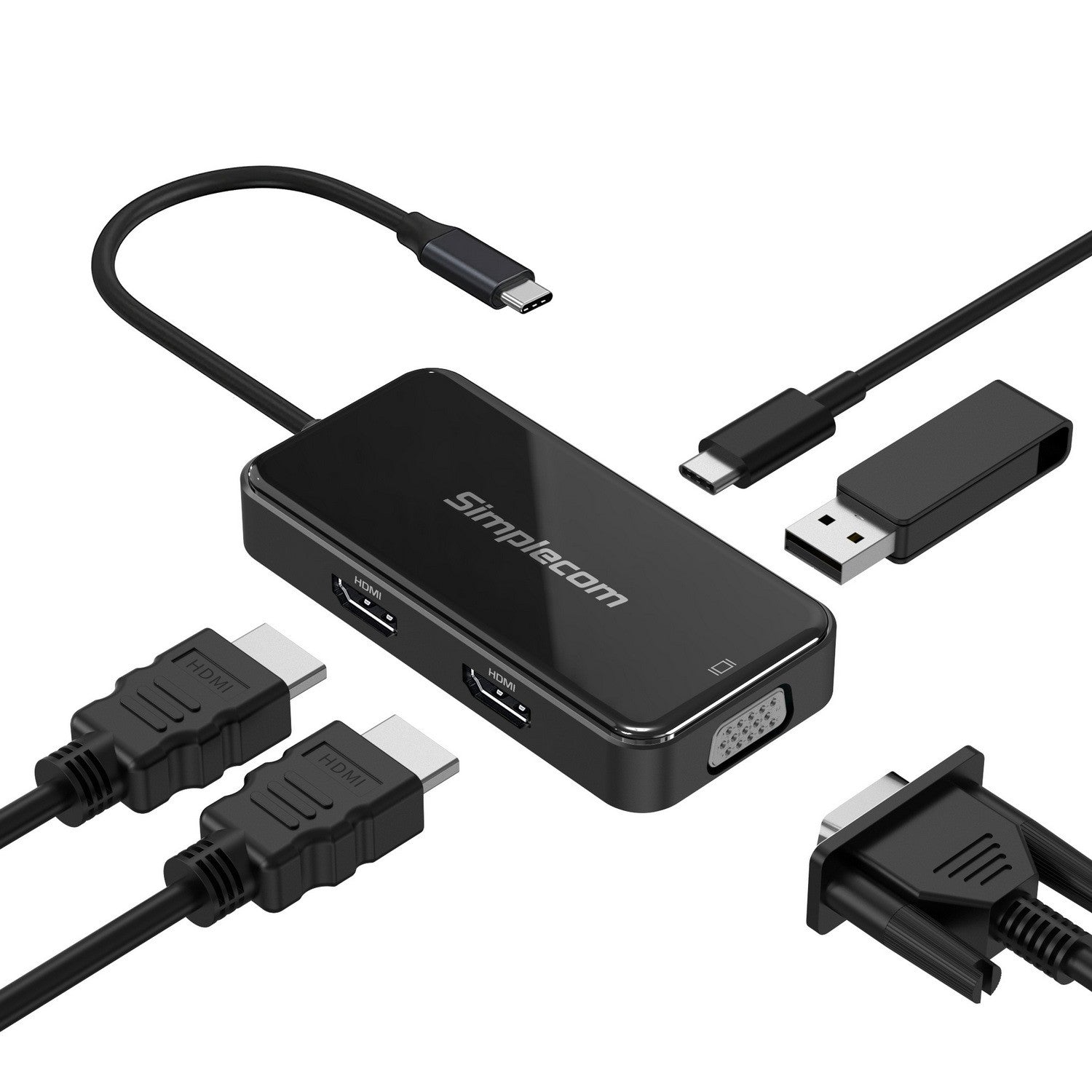

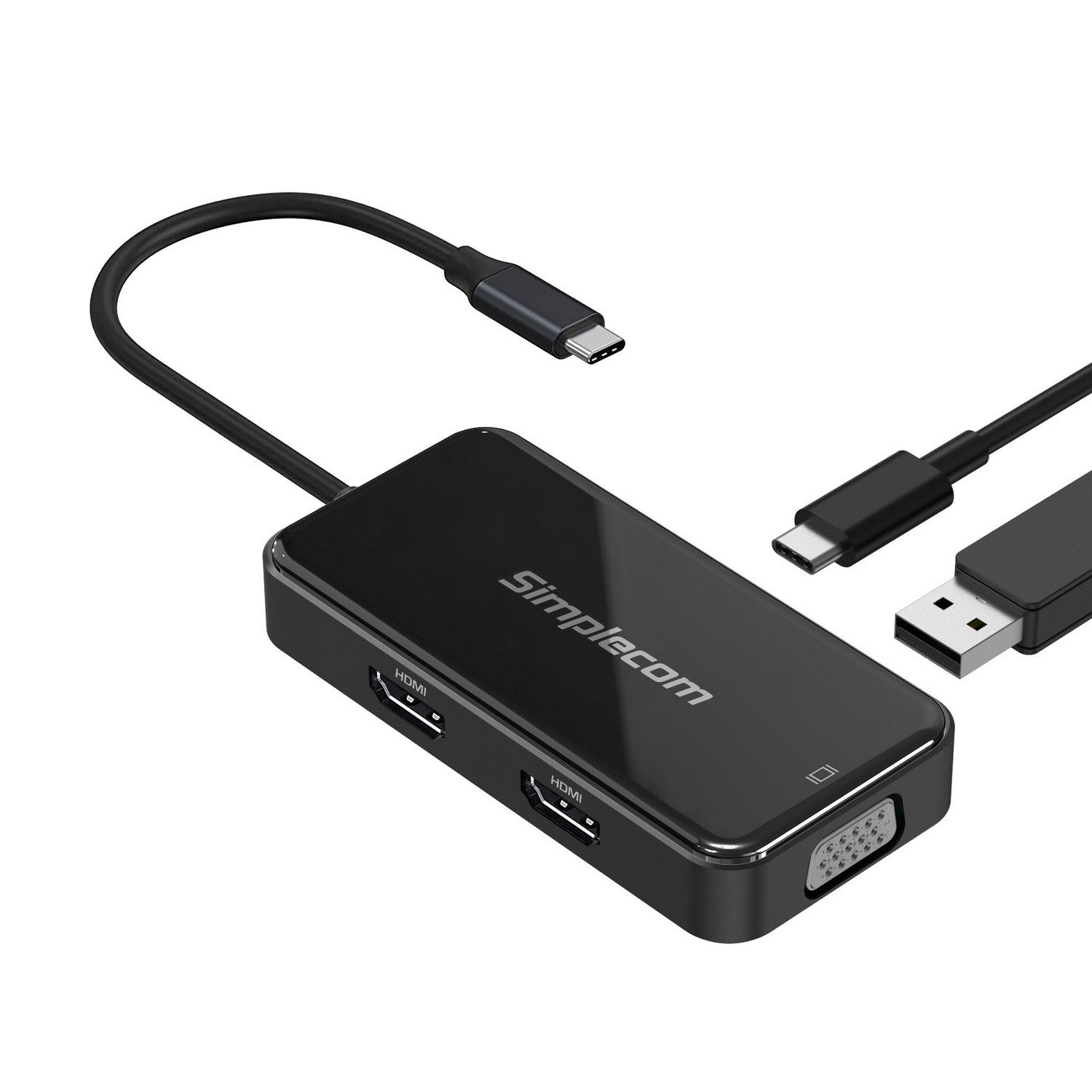

Simplecom DA451 5-in-1 USB-C Multiport Adapter MST Hub with VGA and Dual HDMI

Features

Support MST (Multi Stream Transport) for mirror or extended screen mode

Connect 3 displays to your system through a single USB-C port

Supports up to 3 mirrored screens or 2 extended screens

Significantly increase productivity by adding multiple screens

HDMI supports Ultra HD resolutions up to 4K 30Hz (Single HDMI)

VGA supports Full HD resolutions up to 1080p 60Hz

Supports Power Delivery up to 100W charging via the USB-C port

USB-A SuperSpeed port supports data transfer rate up to 5Gbps

Plug and Play, no Driver or software required

MST supports Windows only, MacOS supports one extended screen only

Specifications

Material: Plastic, Aluminum

Interface: USB-C Male

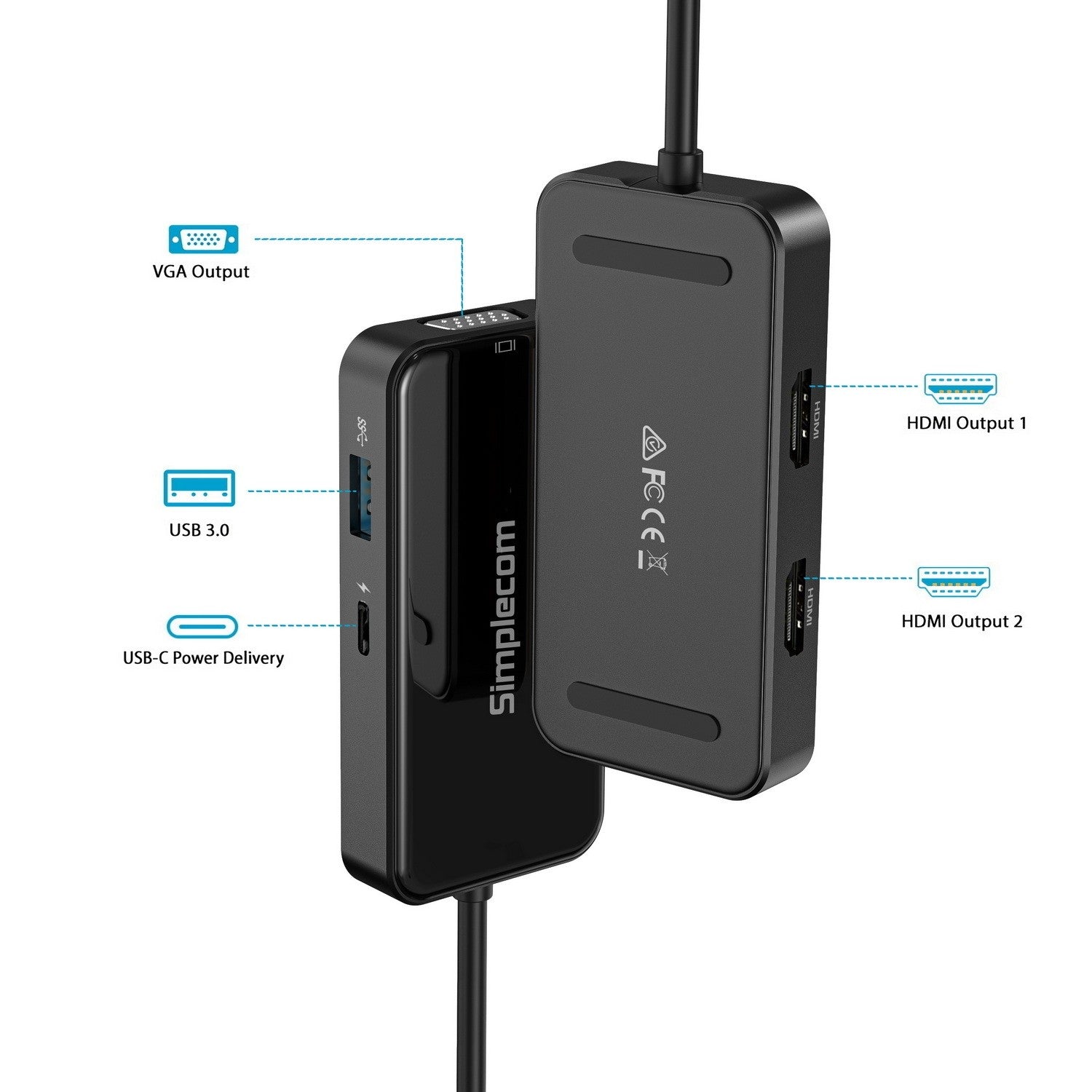

Connection Ports: 2x HDMI, VGA, USB-A, USB-C PD

HDMI Resolution: Support up to 3840x2160 at 30Hz (Single HDMI)

VGA Resolution: Support up to 1920x1080 at 60Hz

PD Charging: 1x USB-C Female (for charging only), up to 100W

USB-A Port: 1x USB-A Female (SuperSpeed 5Gbps)

Operation Temperature: 0 - 50 degreeC

Cable Length: 15cm

Dimension: 9.2cm x 4.5cm x 1.6cm

Weight: 60g

System Requirements

Available USB-C port with DP Alt Mode (DisplayPort Alternate Mode) support

Windows 8 or above for MST and 2 Extended Screen support

MacOS does not support MST technology and will only support one extended mode

Important Note

Before purchasing, please confirm the USB-C port on your device supports DisplayPort Alternate Mode (DP Alt Mode). Some USB-C ports only work for charging or data transfer, no video output function

Screen resolution will be limited to 1080p when two HDMI monitors are connected

Screen resolution will be limited to 1080p when VGA port is connected

The USB-C Female port is for PD Charging only, not for data transfer

Please connect power delivery adapter when power is not enough

USB-A port is not suitable for charging iPad, tablet or other high power USB devices
