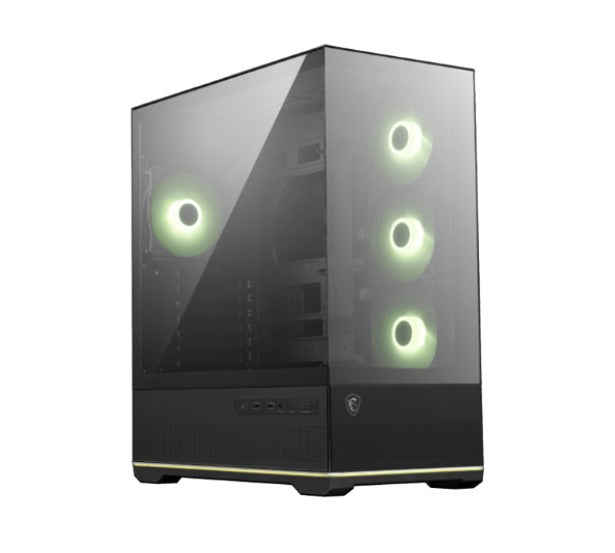

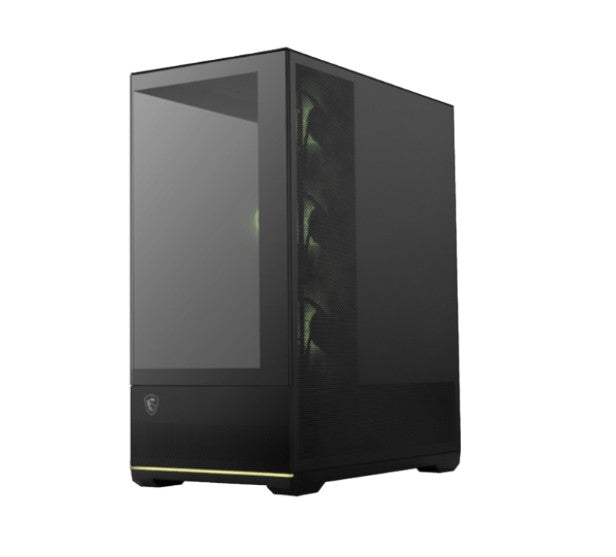

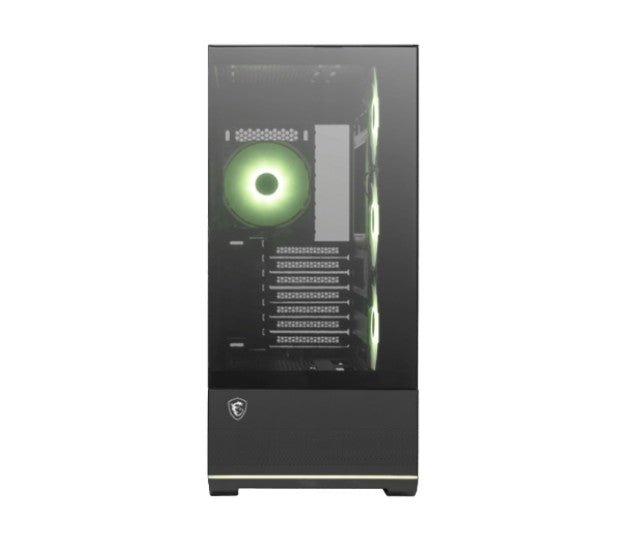

MSI MAG PANO 110R PZ BLACK Micro ATX Case, 2 x USB 5Gbps , 1x USB C 20Gbps, 1 x Audio-Out Mic,, 3x 2.5 ft, 2x 3.5 ft, Micro ATX Mini ITX(NEW)
CASE FORM FACTOR Mid Tower
MOTHERBOARD FORM FACTOR SUPPORT Regular: ATX Micro-ATX Mini-ITX Back-connect: ATX Micro-ATX
I O PORTS
1 x USB 20Gbps Type-C
2 x USB 5Gbps Type-A
1 x Audio-Out Mic-in
1 x LED Switch Button
1 x Power Button
DRIVE MOUNT SUPPORT 3 x 2.5 ft 2 x 2.5 ft 3.5 ft combo
EXPANSION SLOTS 8
MAXIMUM GPU LENGTH 380 mm 14.96 inches
MAXIMUM CPU COOLER HEIGHT 166 mm 6.54 inches
POWER SUPPLY SUPPORT ATX
MAXIMUM PSU LENGTH 200 mm 7.87 inches
FAN SIZE SUPPORT
Top: 3 x 120 mm 3 x 140 mm
Front: NA
Rear: 1 x 120 mm
Side: 3 x 120 mm 2 x 140 mm
Bottom: 3 x 120 mm 2 x 140 mm 2 x 160 mm
PRE-INSTALLED FAN SIZE Side: 3 x 120 mm Rear: 1 x 120 mm
PRE-INSTALLED FAN TYPE Side: 3 x ARGB Reverse-blade Rear: 1 x ARGB
RADIATOR SIZE SUPPORT
Top: 120 240 360 mm
Front: NA
Rear: 120 mm
Side: 120 240 360 mm
Bottom: 120 240 360 mm
DIMENSIONS (DXWXH)
518.7 x 290 x 482 mm 20.42 x 11.42 x 18.98 inches
