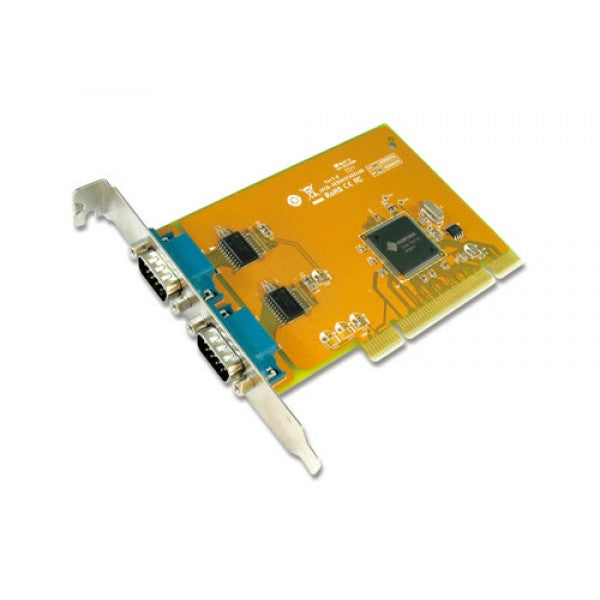

Sunix COMCARD-2P SER5037A Dual Port Serial IO Card PCI Card speeds up to 115.2Kbps Support Microsoft Windows, Linux, and DOS

Description

Product Description 2-port RS-232 Universal PCI Serial Board

Serial Communication

Interface RS-232

Controller SUNIX SUN1989 (16C950 UART Compatible)

Bus Universal PCI 64 32bit 3.3V 5V PCI Ver 3.0, 2.3, 2.2, 2.1

No. of Port 2-port

IRQ IO Assigned by System

FIFO 128 byte (Hardware)

Signal TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, RI

Baud rate 50 bps to 115.2 Kbps

Data bit 5,6,7,8

Stop bit 1,1.5,2

Parity None, Even, Odd, Space, Mark

Flow Control None, Xon Xoff, RTS CTS

Protection ±2KV ESD protection for each signal Human Body Model (HBM)

PCB connector DB9 Male

Driver Support

Windows Client XP Vista 7 8.x 10 (X86 X64)

Windows Server 2003 2008 2012 2016 (X64)

Windows Embedded Windows XP Embedded POSReady 2009 POSReady Embedded System 2009

Linux Linux 2.x 3.x 4.x

DOS DOS

FreeBSD FreeBSD 5.3~5.5 6.0~6.4

QNX QNX 6.3.2 6.4.0

IBM OS 2 WARP 3 WARP 4

SCO UnixWare UnixWare 7.1.3 7.1.4 Open Server 5.0.7 6.0

Sun Microsystems Solaris 10

Note : œ ft Supported by special inquiry.

Regulatory Approvals

Hardware EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 Class B, BSMI: CNS13438, RoHS

Software Microsoft WHQL Windows

Windows Client: XP Vista 7 8.x 10 (X86 X64)

Windows Server: 2003 2008 2012 2016 (X64)

Environment

Operation Temperature 0 to 60 degreeC (32 to 140 degreeF)

Operation Humidity 5 to 95pct RH

Storage Temperature -20 to 85 degreeC (-4 to 185 degreeF)

Dimension

PCB Dimension 120 x 82 mm

Bracket Standard 121 mm

Bracket Space 1
