h2Fanvil i507W Android Indoor Station h2

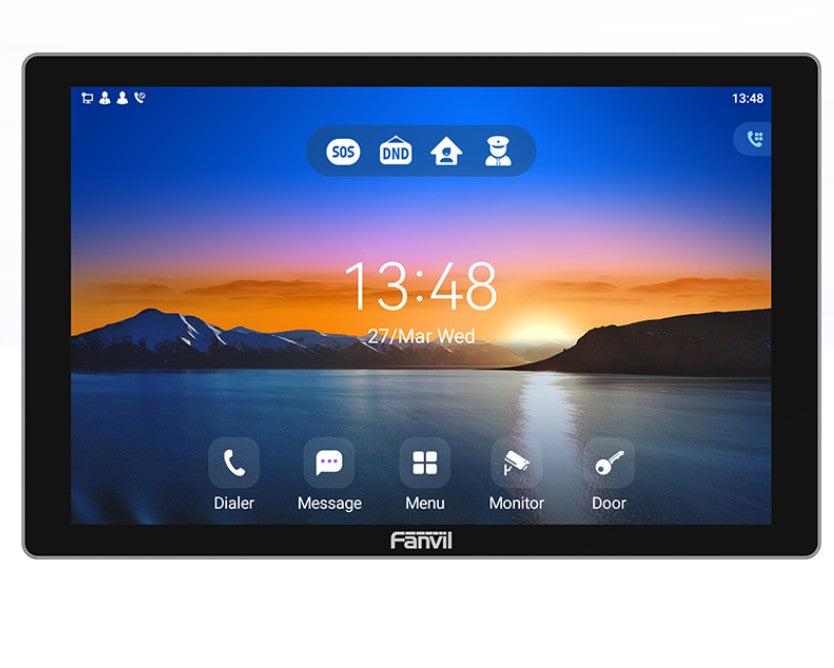

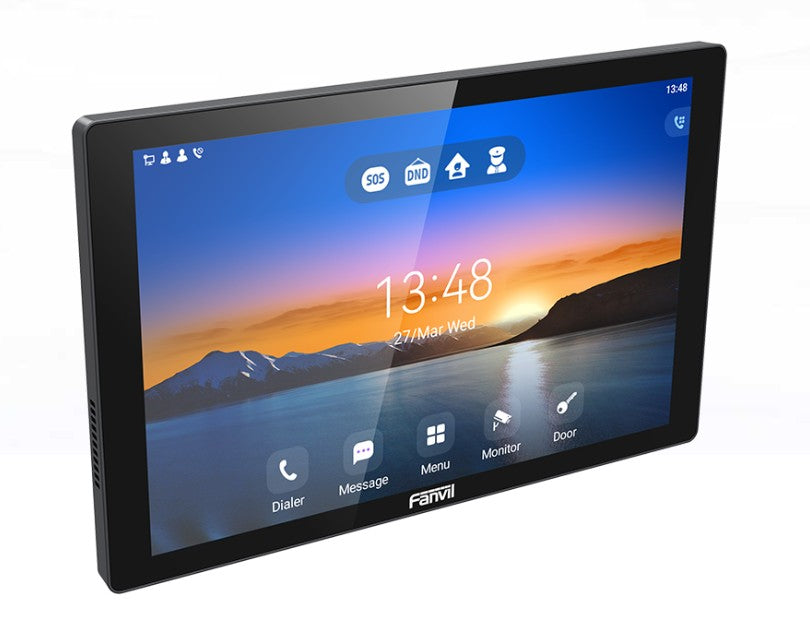

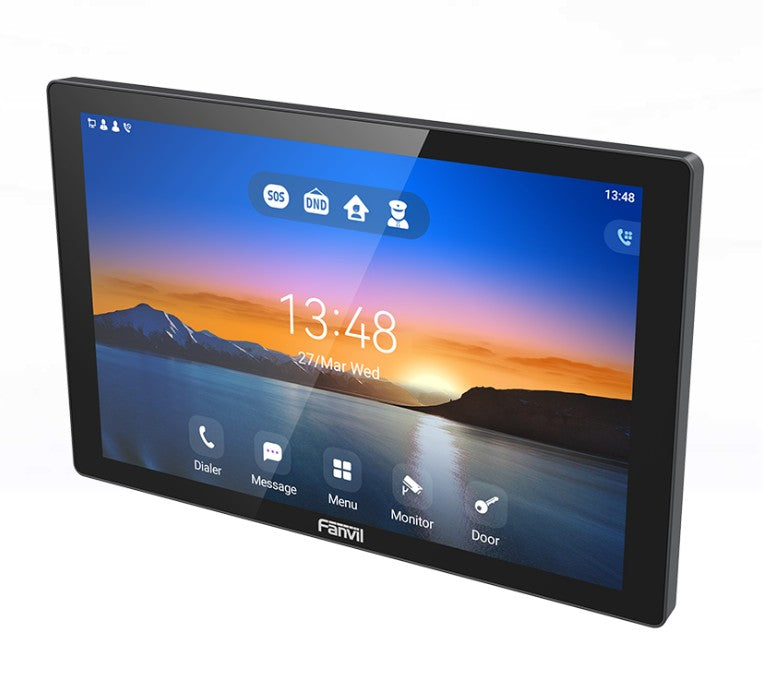

pThe strongFanvil i507W strong is a powerful and stylish 10.1-inch indoor station designed for modern smart buildings, residential communities, villas, and hotels. With its Android 9.0 operating system and intuitive touch interface, it offers seamless integration with third-party applications and security systems, delivering a safe, connected, and convenient user experience. p

h3Key Features: h3

ul

li10.1-inch color IPS capacitive touchscreen (1280—800 resolution) li

liBuilt-in 2W speaker with Acoustic Echo Cancellation (AEC) for high-quality two-way hands-free communication li

liReal-time video monitoring from third-party IP cameras and door phones li

liRich I O interfaces for integrating alarm sensors, doorbells, and automation systems li

liSupports PoE (802.3af) or 12V DC power supply li

liAndroid 9.0 OS for stable performance and support for third-party app installation li

ul

h3Specifications: h3

ul

listrongPanel Type: strong Suitable for community, hotel, and villa environments li

listrongBody Material: strong ABS li

listrongWi-Fi: strong Dual-band 2.4G 5G li

listrongInterfaces: strong 8—Alarm input, 1—Short circuit output, 1—Doorbell input, 1—RS485 (reserved) li

listrongNetwork: strong 10 100 Mbps adaptive Ethernet li

listrongPower Consumption: strong PoE: 2.99~8.64W, Adapter: 2.64~7.18W li

listrongOperating Temperature: strong -10„ƒ to 50„ƒ li

listrongStorage Temperature: strong -40„ƒ to 80„ƒ li

listrongHumidity: strong 10pct~90pct li

listrongDimensions: strong 247.96 x 156.96 x 25.6 mm li

listrongInstallation: strong Wall-mounted li

ul

h3Functional Capabilities: h3

ul

listrongProtocols: strong SIP 2.0 over UDP TCP TLS li

listrongAudio Codecs: strong G.711A U, G.729AB, iLBC, G.722, OPUS li

listrongVideo Codecs: strong H.264, H.265 (optional) li

listrongVideo Resolution: strong QVGA, CIF, VGA, 4CIF, 720P, 1080P li

listrongDTMF: strong In-band, RFC2833, SIP Info li

listrongDo Not Disturb (DND): strong Supported with user-defined timing li

listrongAdditional Features: strong Remote door unlocking, message sending receiving, customizable ringtones, third-party app support li

ul
