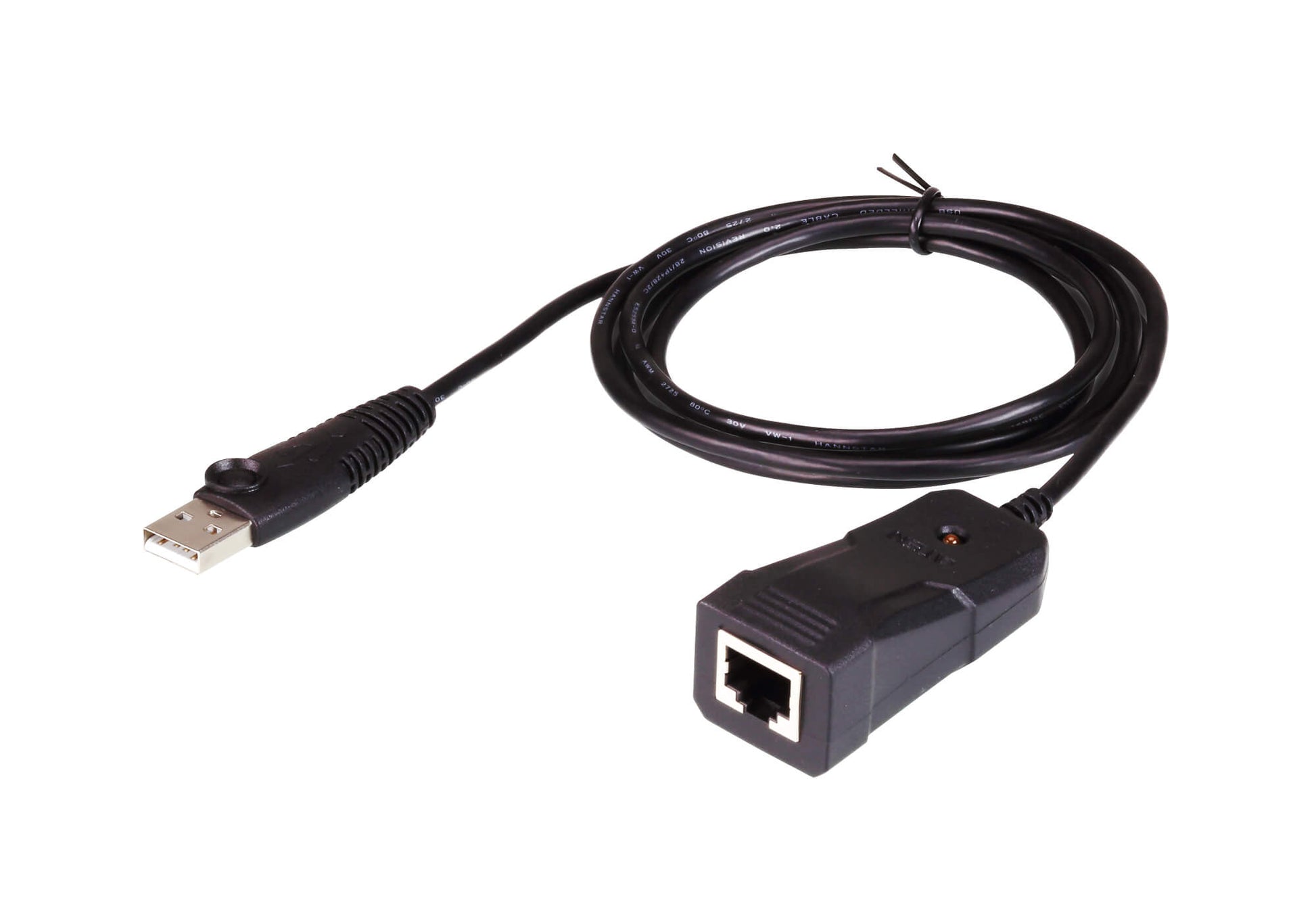

Aten USB to RJ-45 Serial (RS232) converter Support Straight RJ45 Cable, 921.6 Kbps Data Transfer Rate OS Compatibility: Windows, Mac, Linux
Converts a USB port to RJ-45 Console port (RS-232)
Support straight RJ45 cable, no need to use Rolled RJ45 Cable for connecting Networking Router, modem or network switch for configuration
Fast COM Port Transmissionup to 921.6 Kbps data transfer rate
COM retention saves the assigned port settings for the device
OS Compatibility: Windows, Mac, Linux
Plug-and-Play Small and lightweight make it a perfect travel companion
No external power supply needed
Connectors
USB Port 1 x USB Type A Male (White)
Serial 1 x RJ-45 Female (Silver)
Data Rate Up to 921.6Kbps
Cable Length 1.2m
LEDs Power Status
Power Mode Bus Powered
USB Specification USB compliant
Environmental
Operating Temperature 040C
Storage Temperature -2060C
Humidity 080pct RH, Non-condensing
Physical Properties
Housing Plastic
Weight 0.06 kg ( 0.13 lb )
Dimensions (L x W x H) 2.56 x 5.84 x 2.23 cm
(1.01 x 2.3 x 0.88 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Package Contents
1x USB to RS-232 Console Adapter
1x User Instructions
