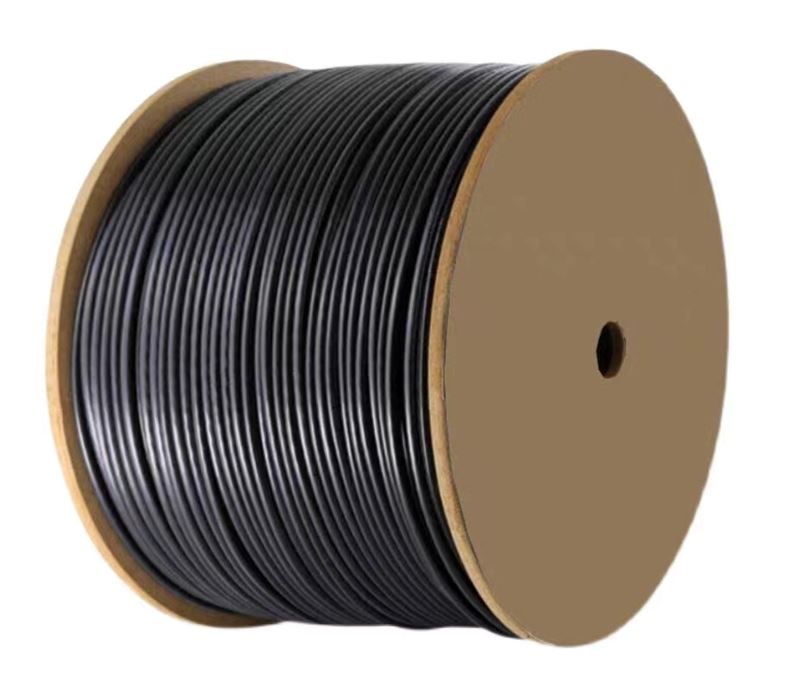

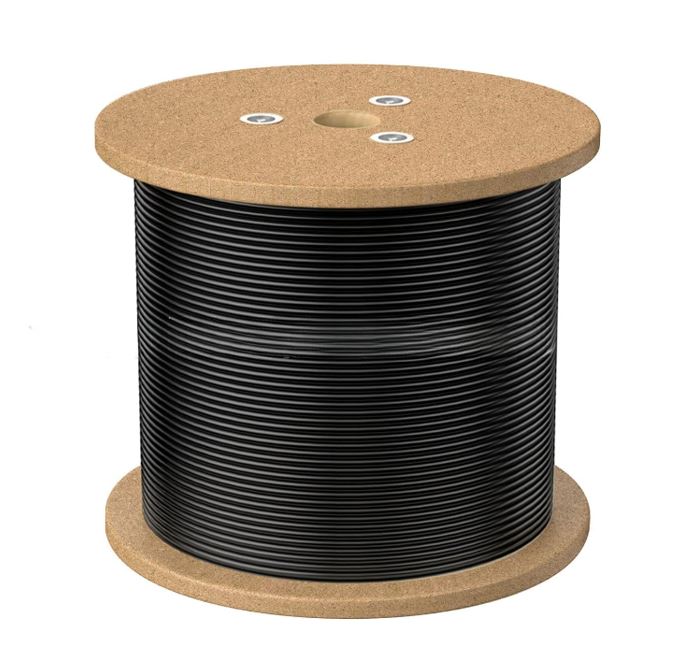

CAT6A cables support networking at gigabit speeds and are backwards compatible with CAT5E cables. Colour coded black for immediate and easy identification.

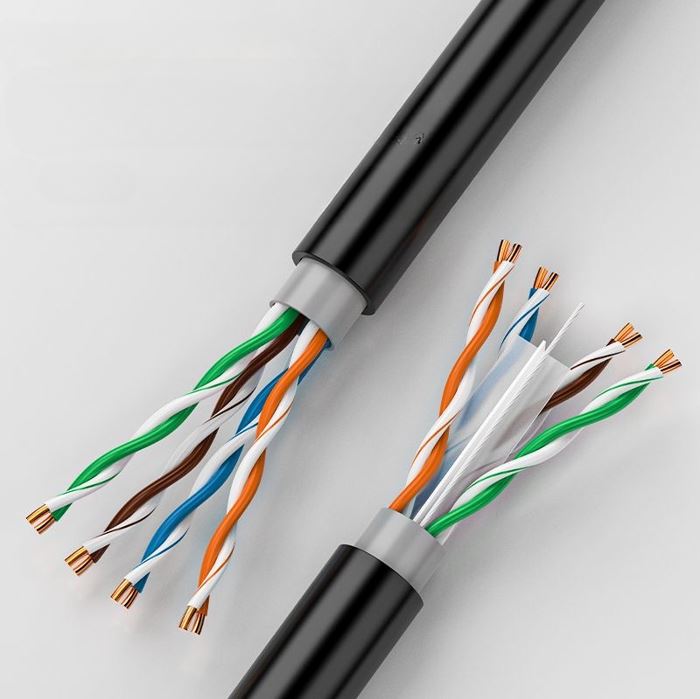

-UTP Cable

-24AWG(1 0.508BC)4P(Conductor OD:0.90mm) Cross

-OD:6.2MM

-Black 3C shining white printing text

-N121017 UTP CAT.6A NETWORK CABLE

-ISO IEC 11801

CABLE SPECIFICATIONS

 Cable Type: Cat6A

 Connectors: Un-terminated

 Length: 350m

 Colour: Black

 Jacket Material: PVE

 Insulation Material: HDPE

 Diameter: Nominal 7.4mm

FEATURES

 Unterminated

 Bare Copper 24AWG

 Impedance Matched - Wire and connectors are carefully matched to virtually eliminate echoing and cancellation, providing high speed, error-free transmission

 24AWG Bare Copper Conductors

 Metre marked Black UV stabilised jacket

COMPLIANCES

 All Proposed Category 5e requirements as per ANSI TIA, ISO IEC Standards

 ANSI TIA 568-C.2 CAT.6A and ISO IEC 11801 CLASS E, 2nd Edition

 RoHS compliant for the requirement of European Union issued Directive 2011 65 EU

APPLICATIONS

 General Outdoor Application

 1000BASE-T Gigabit Ethernet

 10BASE-T, 100BASE-TX Fast Ethernet (IEEE 802.3)

 100 VG - AnyLAN(IEEE802.12), 155 622 Mbps ATM

 500MHz Broadband Video

 Voice, T1, ISDN

WARRANTY

 3-year limited warranty.

PACKAGING DIMENSIONS

 Weight:13KG

 Dimensions: 33x33x30cm
