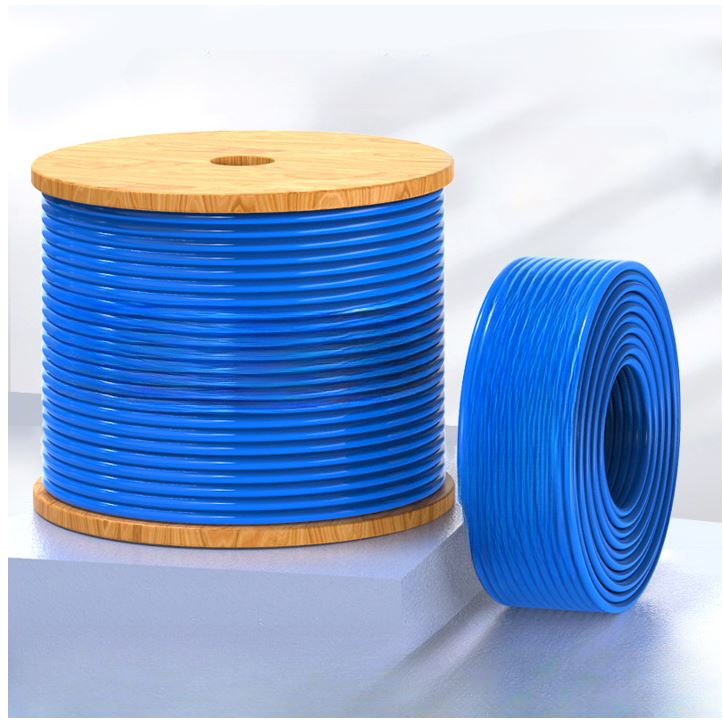

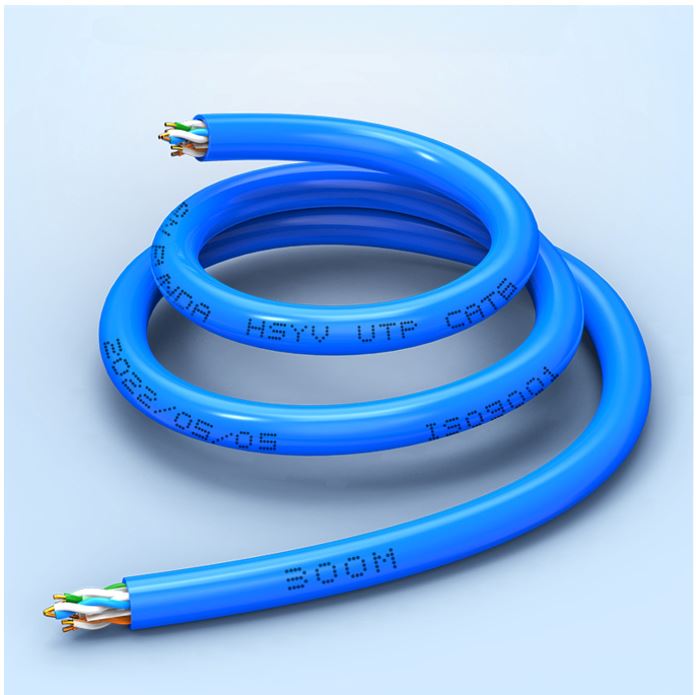

8Ware 350m CAT6A Ethernet 24AWG 30V LAN Cable Bare Copper Twisted Core PVC Jacket Reel Box Blue 305m

Conductor Construction(mm) 1 0.508±0.005

Material Bare Copper

Cabling OD (mm) 0.508

Insulation Material HDPE

OD(mm) 0.90±0.05

Avg. Thickness (mm) 0.18

Color 1234

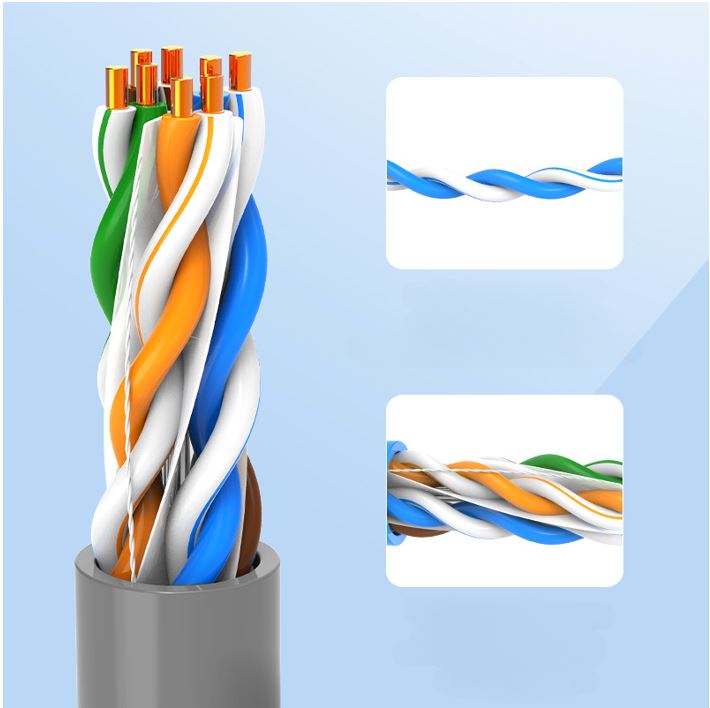

Cores Twisted Yes

Drain Construction(mm) -----

Material -----

Al Constructive Side -----

Overlap Rate -----

Mylar Overlap Rate -----

Assemble Cabling OD (mm) 5.00 (Ref.) Filler

Mylar Overlap Rate -----

Al Constructive Side -----

Drain Construction(mm) -----

Material -----

Braid Construction(mm) -----

Material -----

Coverage -----

Jacket Material PVC (Bright)

OD(mm) 6.20±0.20

Avg. Thickness (mm) 0.6

Color BLUE (PVC001-6027)PT287C

Jet Print Color BLACK

Electrical Characters:

1. Voltage Rating: 30V Temperature Rating: 60„ƒ

2. Dielectric Strength: AC-500V MIN

3. Insulation resistance: 100M (OHMS KM MIN at 20„ƒï¼‰

Physical Characters:

Test Object Jacket

AWG 24
